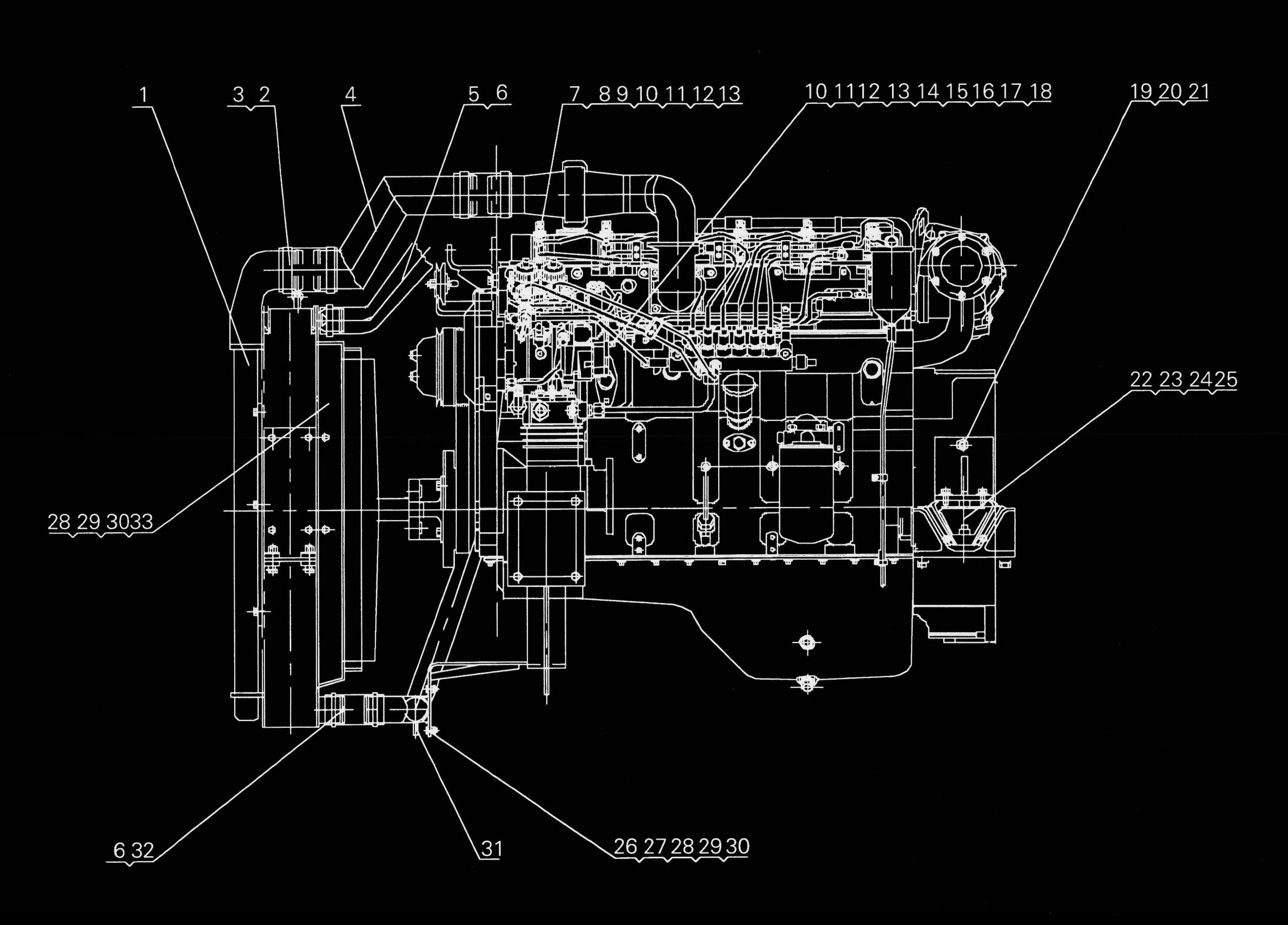

XZ30K.45 发动机安装 I Engine setup I
| 序号 | 零部件代号 | 名称 | 数量 | 备注 | |
| No | Part No. | Part Description | Q’ty | Remark | |
| 1 | 11415269 | 中冷器 | Charge air cooler | 1 | |
| 2 | 11210550 | T型抱箍 Ø92 | T-hoop Ø92 | 6 | |
| 3 | 11211169 | 胶管内径 Ø80L=120 | Rubber pipe Ø80L=120 | 3 | |
| 4 | 03745007 | 中冷器出气管 | Air cooler output tubing | 1 | |
| 5 | 11410736 | 异型胶管 | Rubber pipe | 1 | |
| 6 | 11210186 | 喉箍 Ø44~Ø64 | Hoop Ø44~Ø64 | 8 | |
| 7 | 11415787 | 燃油管 | Fuel pipe | 1 | 用于XZ30K装配底盘 |
| 8 | 11415382 | 燃油管 | Fuel pipe | 1 | 用于XZ25K装配底盘 |
| 9 | 11415779 | 燃油管 | Fuel pipe | 用于XZ35K装配盘 | |
| 10 | 11210218 | 喉箍 Ø10~Ø16 | Hoop Ø10~Ø16 | 4 | |
| 11 | 10410138 | 螺栓 M14×1.5×35 | Bolt M14×1.5×35 | 2 | |
| 12 | 10440016 | 塑圈 14 | Washer 14 | 4 | |
| 13 | 11210447 | 管夹 | Pipe clip | 4 | |
| 14 | 11415776 | 燃油管 I | Fuel pipe I | 1 | |
| 15 | 11415777 | 燃油管 II | Fuel pipe II | 1 | 用于XZ30K装配底盘 |
| 16 | 03745005 | 燃油过滤器安装 | Fuel filter setting | 1 | |
| 17 | 11415778 | 燃油管 II | Fuel pipe II | 用于XZ25K装配底盘 | |
| 18 | 11415780 | 燃油管 II | Fuel pipe II | 用于XZ35K装配底盘 | |
| 19 | 03000205 | 后悬挂左支架 | Left-back bracket | 1 | |
| 20 | 10410288 | 螺栓 M14×1.5×30 | Bolt M14×1.5×30 | 6 | |
| 21 | 10440025 | 垫圈 14 | Washer 14 | 6 | |
| 22 | 10440010 | 垫圈 12 | Washer 12 | 10 | |
| 23 | 10440012 | 垫圈 12 | Washer 12 | 10 | |
| 24 | 10410163 | 螺栓 M12×1.5×30 |
Bolt M12×1.5×30 | 8 | |
| 25 | 11210404 | 软垫 | Rubber cushion | 2 | |
| 26 | 03602173 | 水管支架 I | Water pipe’s bracket I | 1 | |
| 27 | 03000194 | 弯带 | Elbow plate | 2 | |
| 28 | 10440001 | 垫圈 8 | Washer 8 | 16 | |
| 29 | 10410011 | 螺栓 M8×20 | Bolt M8×20 | 16 | |
| 30 | 10430001 | 螺母 M8 | Nut M8 | 9 | |
| 31 | 10610067 | 放水开关 | Water’s switch | 1 | |
| 32 | 11211507 | 胶管内径 Ø55L=120 | Rubber pipe Ø55L=120 | 1 | |
| 33 | 03602075 | 导风罩 | Air guide cover | 1 | |
| 34 | 11211249 | 胶管内径 Ø140L=100 | Rubber pipe Ø140L=100 | 1 | |
| 35 | 11411760 | T型抱箍 Ø152.4 | T-hoop Ø152.4 | 2 | |
| 36 | 11210539 | 胶管内径 Ø100L=80 | Rubber pipe Ø100L=80 | 1 | |
| 37 | 03403037 | 变径管 | Changed pipe | 1 | |
| 38 | 11210565 | T型抱箍 Ø117 | T-hoop Ø117 | 2 | |
| 39 | 11211652 | 胶管内径 Ø19L=2600 | Rubber pipe Ø19L=2600 | 1 | |
| 40 | 11210350 | 喉箍 Ø16~Ø25 | T-hoop Ø16~Ø25 | 2 | |
| 41 | 03602090 | 水管 III | Water pipe III | 1 | |
| 42 | 03602082 | 发动机前悬挂支座 | Engine’s front bracket | 1 | |
| 43 | 03602086 | 水管 I | Water pipe I | 1 | |
| 44 | 11211145 | 胶管内径 | Rubber pipe | 2 | |
| 45 | 03602095 | 水管 IV | Water pipe IV | 1 | |
| 46 | 10410006 | 螺栓 M16×35 | Bolt M16×35 | 8 | |
| 47 | 10440002 | 垫圈 16 | Washer 16 | 8 | |
| 48 | 03403033 | 排气管 | Air output pipe | 1 | |
| 49 | 03400180 | 衬垫 | Gasket | 1 | |
| 50 | 排气管 II | Air output pipe II | 1 | ||
| 51 | 03000175 | 卡贮 | Hoop | 1 | |
| 52 | 03000213 | 弯板 | Elbow plate | 1 | |
| 53 | 10410022 | 螺栓 M10×40 | Bolt M10×40 | 2 | |
| 54 | 10430004 | 螺母 M10 | Nut M10 | 6 | |
| 55 | 03001122 | 卡痼 | Hoop | 1 | |
| 56 | 03000209 | 后悬挂石支座 | Right-back bracker | 1 | |
| 57 | 03745006 | 继电器支架 | Relay’s bracker | 1 | |
| 58 | 10420004 | 螺栓 M12×25 | Bolt M12×25 | 2 | |
| 59 | 10000052 | 发动机 | Engine | 1 | |
| 60 | 03602088 | 水管 II | Water pipe II | 1 | |
| 61 | 03602176 | 水管支架 II | Water pipe’s bracket II | 1 | |
| 62 | 03403042 | 中冷器进气管 I | Air cooler input tubing I | 1 | |
| 63 | 03403047 | 支架 | Bracket | 1 | |
| 64 | 03403048 | 管夹 | Pipe clip | 1 | |
| 65 | 10420002 | 螺栓 M10×20 | Bolt M10×20 | 4 | |
| 66 | 10440006 | 塾圈 10 | Washer 10 | 4 | |
