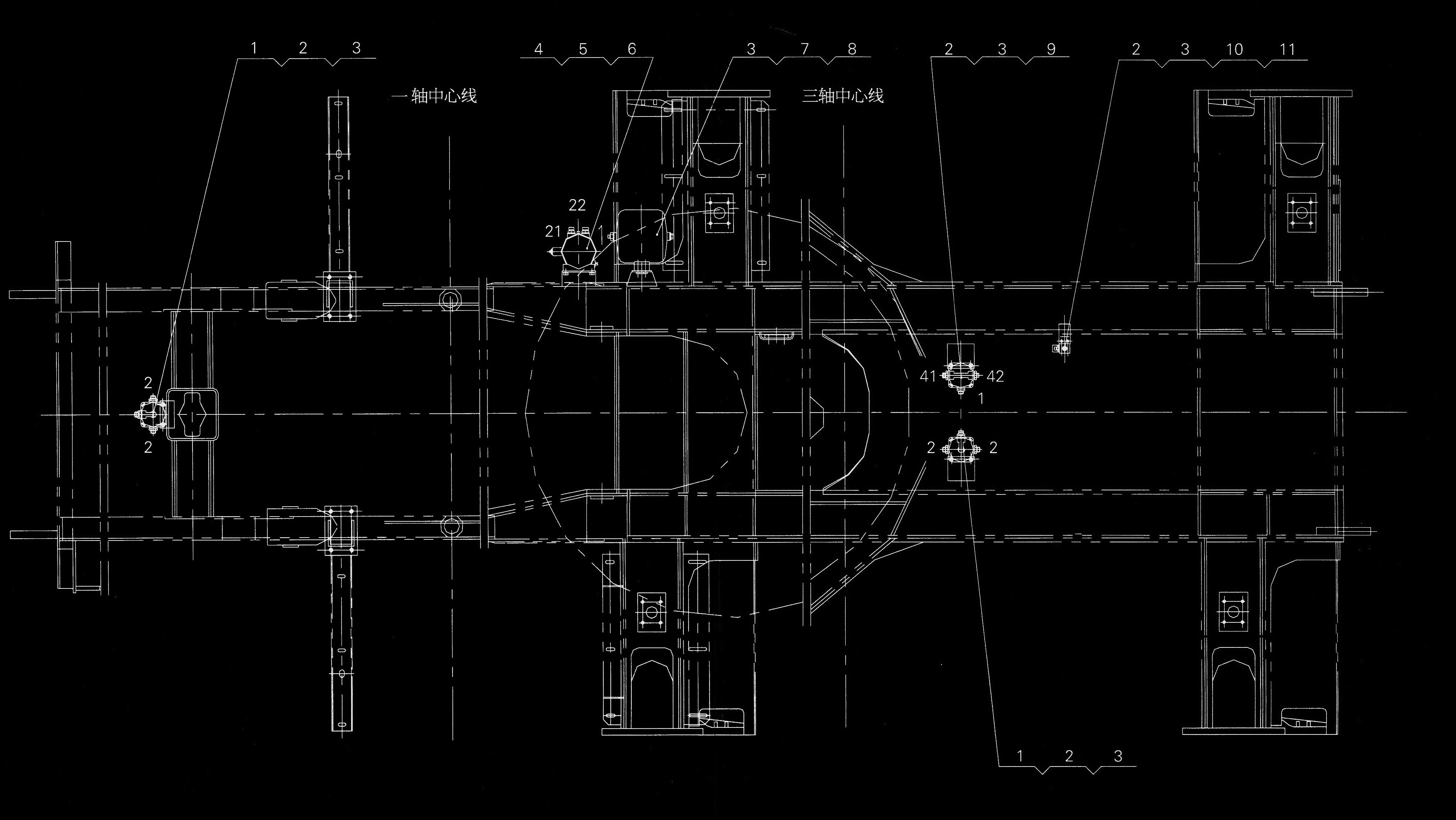

XZ30K.41 气路阀安装 Air Valve Assembly
| 序号 | 零部件代号 | 名称 | 数量 | 备注 | |
| No | Part No. | Part Description | Q’ty | Remark | |
| 1 | XZ16C.41.4 | 脚继动阀安装 | Foot Relay Valve Assembly | 2 | |
| 2 | 10440001 | 垫圈 | Washer | 11 | |
| 3 | 10430001 | 螺母 | Nut | 8 | |
| 4 | XZA50.41.6 | 干燥器安装 | Air Dryer Assembly | 1 | |
| 5 | 10410253 | 螺栓 | Bolt | 3 | |
| 6 | 10440010 | 垫圈 | Washer | 3 | |
| 7 | XZ30K.41.1 | 贮气筒安装 | Air Reservoir Assembly | 1 | |
| 8 | 10410011 | 螺栓 | Bolt | 3 | |
| 9 | XZ16C.41.2 | 手继动阀安装 | Hand Relay Valve Assembly | 1 | |
| 10 | XZ16C.41.3 | 电磁阀安装 | Solenoid Vavle Assembly | 1 | |
| 11 | 10410563 | 螺栓 | Bolt | 2 | |
