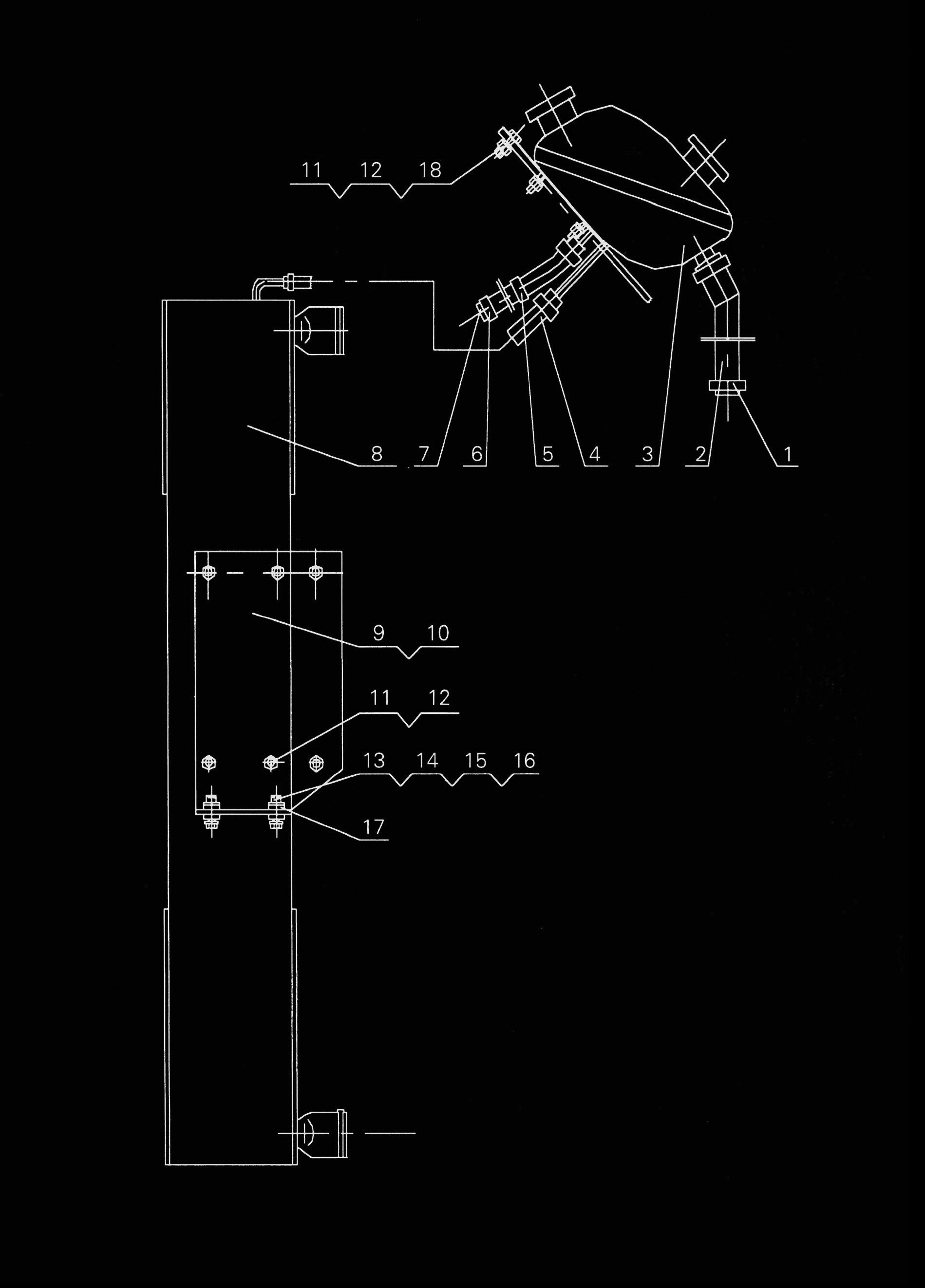

XZ50K.48 散热器安装 Radiator Assembly
| 序号 | 零部件代号 | 名称 | 数量 | 备注 | |
| No | Part No. | Part Description | Q’ty | Remark | |
| 1 | 11210223 | 卡箍 Ø10~Ø16 | Clip Ø10~Ø16 | 2 | |
| 2 | XZ16K.48-5A | 胶管 | Rubber house | 1 | |
| 3 | 10810027 | 膨胀水箱 | Expansion water tank | 1 | |
| 4 | XZ16K.48-1A | 胶管 | Rubber house | 1 | |
| 5 | 11211057 | 扎带 | Bandage | 5 | |
| 6 | 11210218 | 卡箍 Ø10~Ø16 | Clip Ø10~Ø16 | 4 | |
| 7 | XZ16K.48-4A | 胶管 | Rubber house | 1 | |
| 8 | 11411759 | 散热器 | Radiator | 1 | |
| 9 | XZ16K.48-2B | 支架 | Ally arm | 1 | |
| 10 | XZ16K.48-6 | 支架 | Ally arm | 1 | |
| 11 | 10430001 | 螺母 | Nut | 11 | |
| 12 | 10440001 | 垫圈 8 | Washer 8 | 11 | |
| 13 | 10410247 | 螺栓 M12×45 | Bolt M12×45 | 4 | |
| 14 | 10440123 | 垫圈 12 | Washer 12 | 4 | |
| 15 | 10430061 | 螺母 M12 | Nut M12 | 4 | |
| 16 | 10470172 | 销 3.2×18 | Pin 3.2×18 | 4 | |
| 17 | XZ16K.48-3 | 橡胶垫 | Rubber cushion | 8 | |
| 18 | 10410011 | 螺栓 M8×20 | Bolt M8×20 | 3 | |
