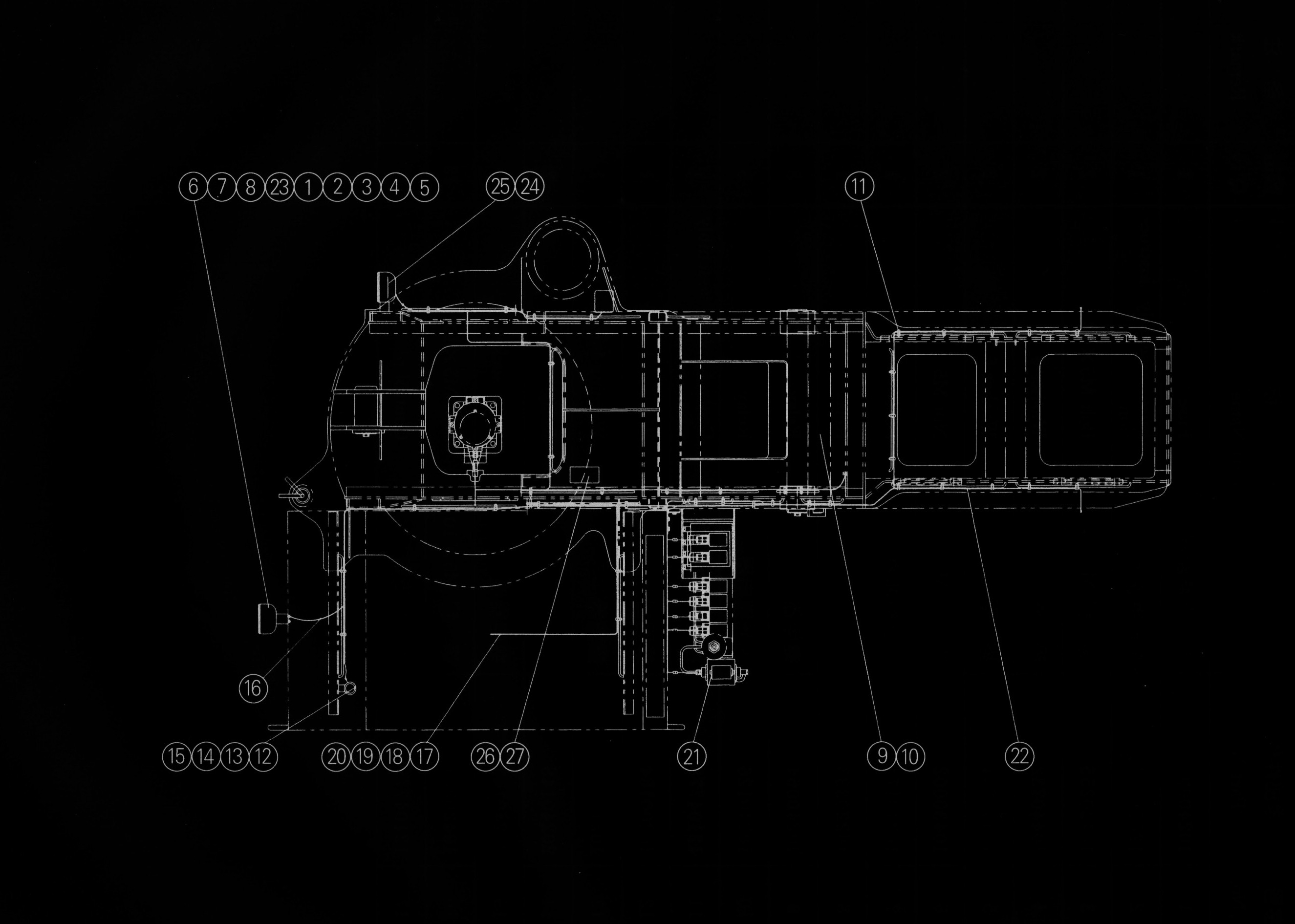

QY25K5 – 01811014 转台电器 Turn table appliance

序号	零部件代号	名称		数量	备注
Sr, No.	Part No.	Part name		Q’ ty	Remark
1	10230096	圆柱形插头	Columniform plug	10
2	10230093	圆柱形插头护套	The jacket of columniform plug	10
3	10200021	大灯	Working lamp	1
4	10410374	螺栓 M6×16	Bolt M6×16	3
5	10430009	螺母 M6	Nut M6	3
6	10440022	垫圈 6	Washer 6	3
7	10440021	垫圈 6	Washer 6	3
8	10230040	片形孔式接头	Sheet plug	6
9	10230045	双芯复合插头	Double plug	20
10	12104849	转台电气焊接图	Turn table appliance welded construction	1
11	11211006	扎带	Clip strip	50
12	10230061	片式插接件插座	Sheet socket	1
13	10230060	片式插接件护套	The jacket of sheet socket	1
14	30249122	热缩套管 L=20	Sleeve L=20	6
15	10200162	喇叭	Electric horn	1
16	30249130	塑料套管 L=4m	Plastic sleeve pipe L=4m	1
17	10220145	转台线束	Turn table wires	1	用于先导型欧III配置 Used for pilot EURO III
18	10220146	转台线束	Turn table wires	1	用于欧III配置 Used for EURO III
19	10220013	转台线束	Turn table wires	1
20	10220204	转台线束	Turn table wires	1	用于机械操纵 used for machine control
21	20240058	行程开关	Position switches	1	用于机械操纵 used for machine control
22	10220103	三芯电缆	Cable L=3m	1
23	01200818	大灯支架	Working lamp support	1
24	8611004	大灯支架	Working lamp support	1
25	10420102	螺钉 M6×12	Bolt M6×12	2
26	20210054	电子水平仪	Electronic radienter	1
27	10210009	电子水平仪	Electronic radienter	1
