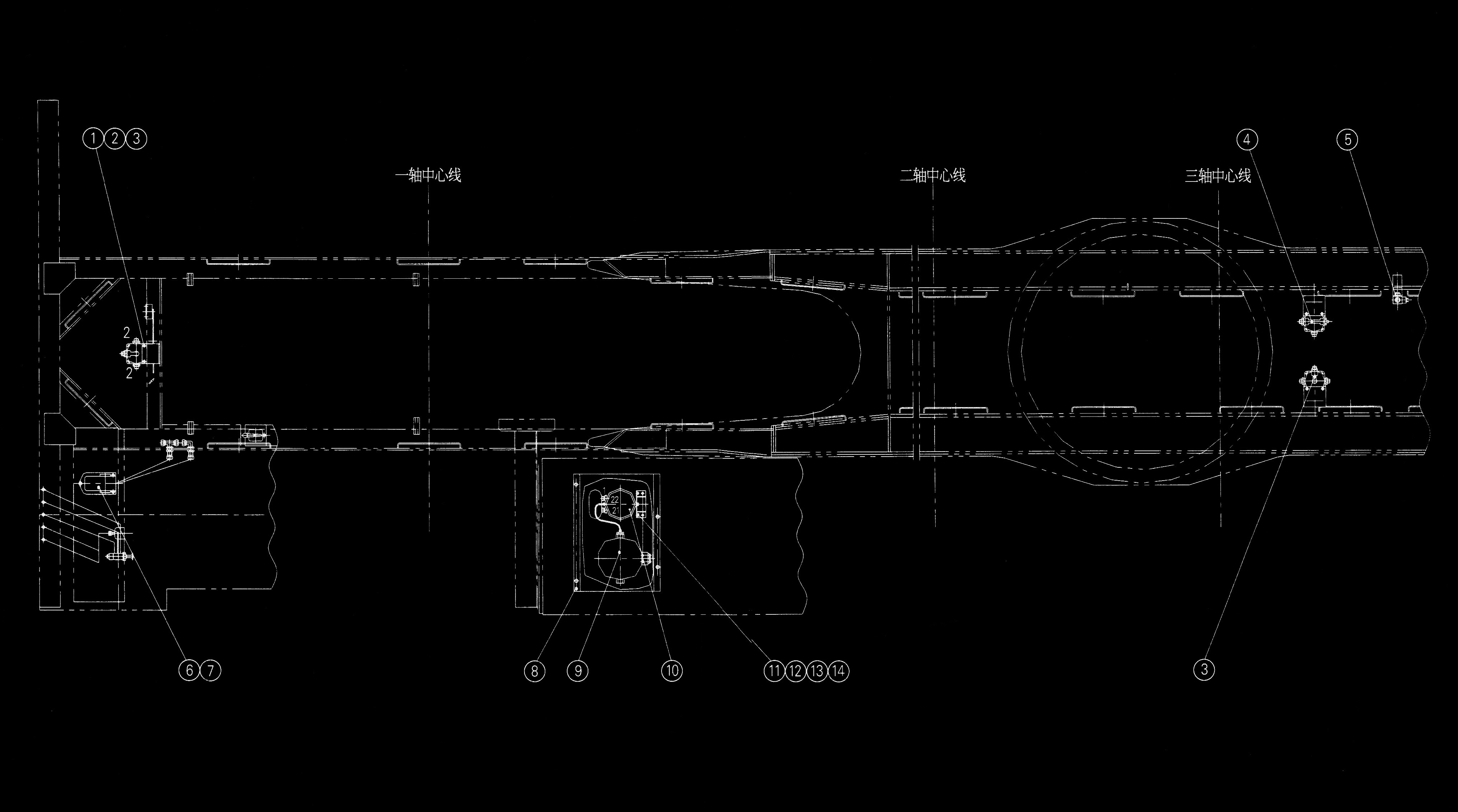

QY25_41C 气路阀安装 Air Valve Assembly
| 序号 | 代号 | 名称 | 数量 | 备注 | |
| № | Part No. | Part Description | Q’ty | Remark | |
| 1 | 10440001 | 垫圈 8 | Washer 8 | 8 | |
| 2 | 10430001 | 螺母 M8 | Nut M8 | 8 | |
| 3 | XZ16C.41.4 | 脚继动阀安装 | Foot relay valve assembly | 2 | |
| 4 | QY25.41.1A | 气路系统用支架焊接 | Air system bracket jointing | 1 | |
| 5 | XZ16C.41.2 | 手继动阀安装 | Hand relay valve assembly | 1 | |
| 6 | XZ16C.41.3 | 电磁阀安装 | Solenoid valve assembly | 1 | |
| 7 | QY25.41.2A | 驾驶室气路阀安装 | Air valve on cab assembly | 1 | |
| 8 | XZ16C.41.6 | 驾驶室气路阀安装 | Air valve on cab assembly | 1 | |
| 9 | XZ16C.41-7 | 干燥器罩 | Air dryer cover | 1 | |
| 10 | XZ16K.41.7 | 贮气筒安装 | Air reservoir assembly | 1 | |
| 11 | XZ50.41.2 | 干燥器安装 | Air dryer assembly | 1 | |
| 12 | 10440006 | 垫圈 10 | Washer 10 | 8 | |
| 13 | 10430001 | 螺母 M10 | Nut M10 | 8 | |
| 14 | 10430021 | 螺栓 M10×25 | Bolt M10×25 | 8 | |
| 15 | 10440009 | 垫圈 10 | Washer 10 | 8 | |
