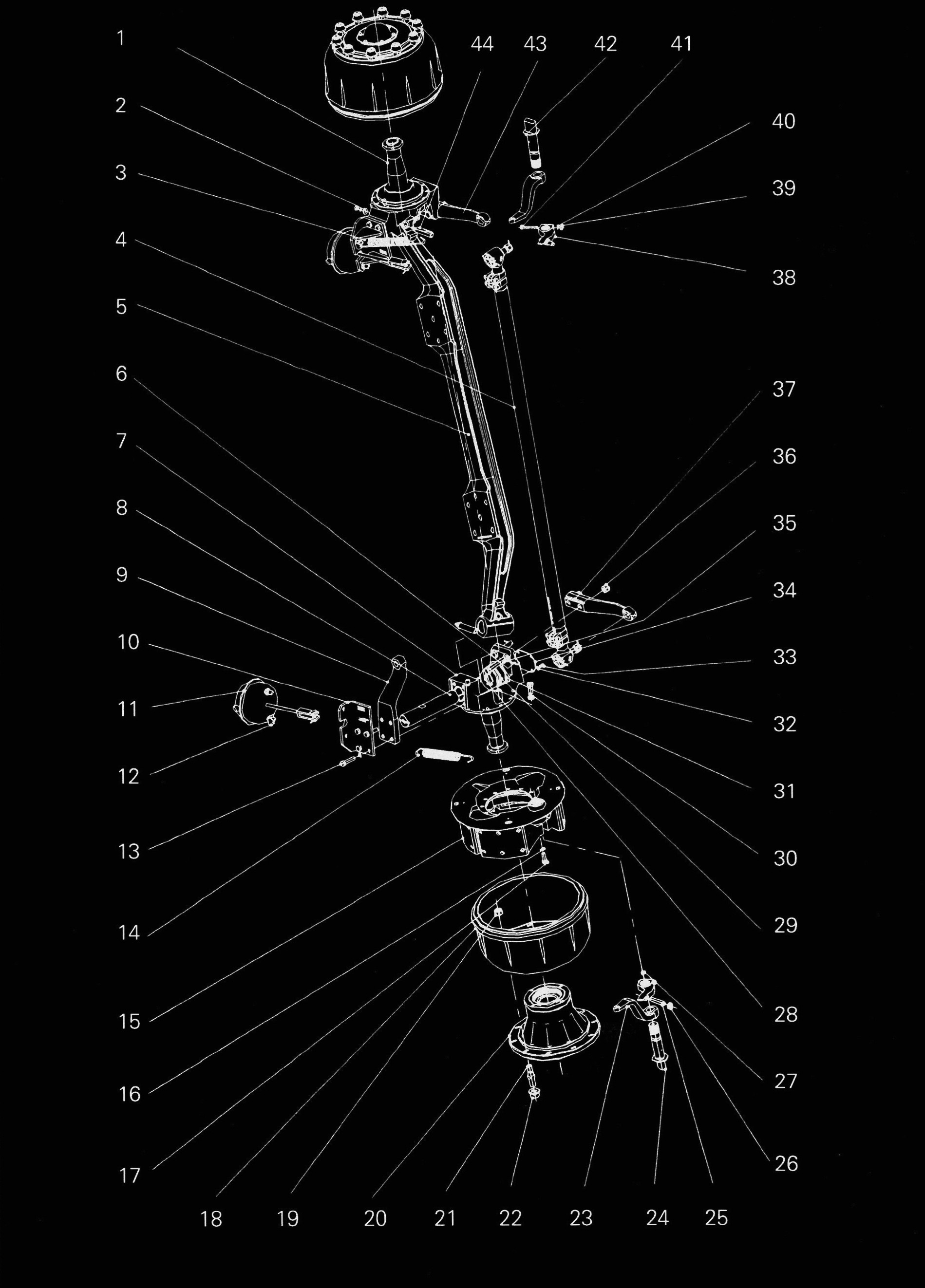

| 序号 | 零部件代号 | 名称 | 数量 | 备注 | |
| No | Part No. | Part Description | Q’ty | Remark | |
| 1 | 80622003 | 转向节总成 | Steer joint ass. | 1 | |
| 2 | 79601073 | 垫 | Gasket | 2 | |
| 3 | 80428002 | 气室支架 | Bracket | 1 | |
| 4 | 80622010 | 横拉杆总成 | Pull pole ass. | 1 | |
| 5 | 81779000 | 桥壳总成 | Housing | 1 | |
| 6 | 51210015 | 销 40×4 | Pin 40×4 | 4 | |
| 7 | 80622004 | 转向节总成 | Steer joint ass. | 1 | |
| 8 | 80622008 | 主销轴 | Pin shaft | 2 | |
| 9 | 80779001 | 转向主动臂 | Steer arm | 1 | |
| 10 | 80428001 | 气室支架 | Bracket | 1 | |
| 11 | 55000044 | 制动气室 24″ | Air room 24″ | 2 | |
| 12 | 79601225 | 弹簧挂钩 | Spring hook | 1 | |
| 13 | 50009029 | 螺栓 M14×60 | Bolt M14×60 | 4 | |
| 14 | 79601023 | 弹簧 | Spring | 1 | |
| 15 | 79601004 | 制动器总成 420×150P | Brake-staff 420×150P | 2 | |
| 16 | 52020005 | 垫圈 14 | Ring 14 | 32 | |
| 17 | 50009062 | 螺栓 M14×35 | Bolt M14×35 | 28 | |
| 18 | 79601003 | 制动鼓 | Brake drum | 2 | |
| 19 | 51019004 | 螺母 M20×1.5 | Nut M20×1.5 | 20 | |
| 20 | 83622200 | 轮毂总成 | Hub ass. | 2 | |
| 21 | 50016001 | 轮網螺栓 M20×1.5×52 | Wheel bolt M20×1.5×52 | 20 | |
| 22 | 51017001 | 轮辋螺母 M20×1.5 | Wheel nut M20×1.5 | 20 | |
| 23 | 80428003 | 制动臂 | Brake-arm | 2 | |
| 24 | 79601005 | 左凸轮轴 | Left camshaft | 1 | |
| 25 | 79601013 | 调整螺栓 | Adjusting bolt | 2 | |
| 26 | 51070003 | 螺母 M16×1.5 | Nut M16×1.5 | 4 | |
| 27 | 56300002 | 油杯 10×1 | Grease cup 10×1 | 6 | |
| 28 | 54940001 | 轴承 51211E | Bearing 51211E | 2 | |
| 29 | 79601040 | 护圈 | Guard ring | 2 | |
| 30 | 79601032 | 限位螺钉 | Limiting volt | 2 | |
| 31 | 79601041 | 调整垫片组 | Adjusting gasket ass. | 2 | |
| 32 | 52020002 | 垫圈 8 | Ring 8 | 8 | |
| 33 | 50009003 | 螺栓 M8×16 | Bolt M8×16 | 8 | |
| 34 | 79601046 | 转向节下盖 | Downer cover | 2 | |
| 35 | 50001003 | 螺栓 M18×1.5×95 | Bolt M18×1.5×95 | 4 | |
| 36 | 51080002 | 螺母 | Nut | 4 | |
| 37 | 80622005 | 转向臂 | Steering arm | 2 | |
| 38 | 79601015 | 前制动调节臂 | Adjusting arm | 2 | |
| 39 | 51014003 | 螺母 M10 | Nut M10 | 4 | |
| 40 | 52020003 | 垫圈 10 | Ring 10 | 4 | |
| 41 | 50008019 | 螺栓 M10×65 | Bolt M10×65 | 2 | |
| 42 | 79601051 | 右制动凸轮轴 | Right camshaft | 1 | |
| 43 | 80622006 | 转向臂 | Steering arm | 1 | |
| 44 | 79601074 | 固定销 | Fixing pin | 2 | |
