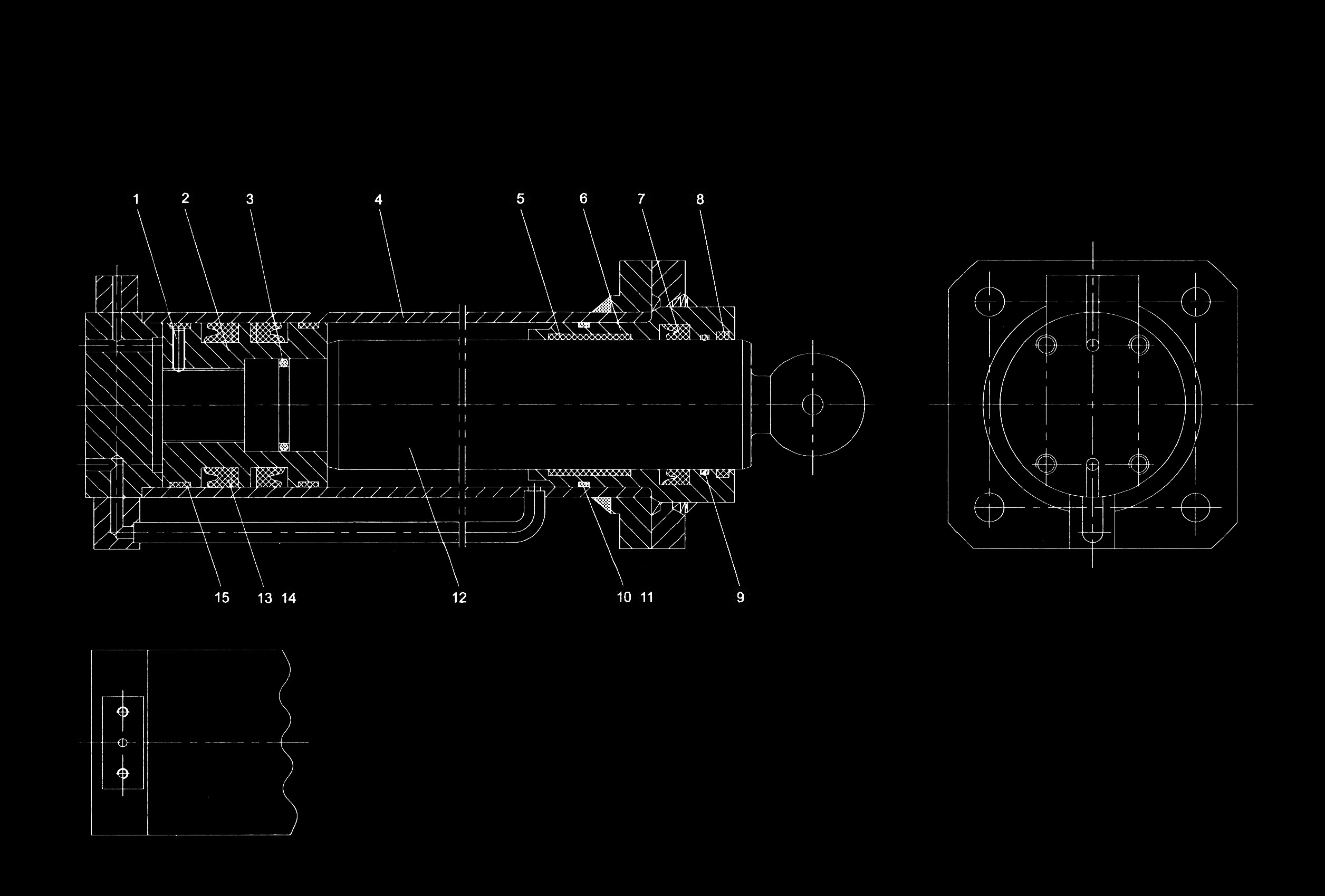

135603604 第五支腿油缸 Steering Hydraulic System

Category:
序号 代号 名称 数量 备注
№ Code Part Description Q’ty Remark
1 紧定螺钉 M8×16 Bolt M8×16 1 GB71-85
2 活塞 Piston 1
3 O形圈 45×3.5 O seal ring 45×3.5 1 GB1235-76
4 缸筒 Cylinder 1
5 支承环 D63×40×3 Support ring D63×40×3 1
6 导向套 Guide ring 1
7 Yx轴用密封 D63×78×11.4 Airproof ring D63×78×11.4 1
8 防尘圈 D63×77×10 Dustproofring D63×77×10 1
9 O形圈 68×3.1 O seal ring 68×3.1 1 GB1235-76
10 O形圈 80×3.1 O seal ring 80×3.1 1 GB1235-76
11 挡圈 D80×75.2×1.5 Check ring D80×75.2×1.5 1
12 活塞杆 Piston body 1
13 Yx孔用密封 D80×65×10 Airproof ring D80×65×10 2
14 挡圈 D80×65×2 Check ring D80×65×2 2
15 支承环 D80×10×3 Support ring D80×10×3 2
