| 序号 | 代号 | 名称 | 数量 | 备注 | |
| № | Code | Part Description | Q’ty | Remark | |
| 1 | 805000347 | 螺柱 M10×70 | Bolt M10×70 | 12 | GB/T898-1988 |
| 2 | 805000209 | 螺柱 M10×90 | Bolt M10×90 | 12 | GB/T898-1988 |
| 3 | 800300073 | 离合器 | Clutch | 1 | JL420IC |
| 4 | 800300181 | 离合器 | Clutch | 1 | JL430ZMTBO |
| 5 | 805300014 | 垫圈 10 | Washer 10 | 20 | GB/T93-1987 |
| 6 | 805300091 | 垫圈 10 | Washer 10 | 12 | GB/T955-1987 |
| 7 | 805300020 | 垫圈 12 | Washer 12 | 1 | GB/T93-1987 |
| 8 | 805600083 | 销 B12×35 | Pin B12×35 | 1 | GB/T882-1986 |
| 9 | 800300181 | 销 4×26 | Pin 4×26 | 1 | GB/T91-2000 |
| 10 | 134900820 | 分泵支架 | Pump bracket | 1 | |
| 11 | 805300017 | 垫圈 10 | Washer 10 | 4 | GB/T97.1-2002 |
| 12 | 134900820 | 分泵支架 | Pump bracket | 1 | |
| 13 | 805000727 | 螺栓 M10×25 | Bolt M10×25 | 4 | GB/T5783-2000 |
| 14 | 803000545 | 离合器分泵 | Clutch branch pump | 1 | |
| 15 | 130201125 | 接头体 | Connector | 2 | |
| 16 | 135601399 | 接头体 | Connector | 1 | |
| 17 | 805000576 | 螺栓 M14×1.5 | Bolt M14×1.5 | 1 | GB/T3750.3-1983 |
| 18 | 130200709 | 铜管 Ø8×1-3800 | Copper pipe Ø8×1-3800 | 1 | |
| 19 | 805200157 | 螺母 A8 | Nut A8 | 2 | GB/T5647-1985 |
| 20 | 803100644 | 管套 8 | Clip sleeve 8 | 2 | GB/T5646-1985 |
| 21 | 800300471 | 变速箱 | Transmission | 1 | 8JS125T |
| 22 | 134903018 | 左支架 | Left bracket | 1 | |
| 23 | 111000988 | 端直通接头 | End straight connector | 2 | |
| 24 | 805000013 | 螺栓 M16×35 | Bolt M16×35 | 8 | GB/T5783-2000 |
| 25 | 805300011 | 垫圈 16 | Washer 16 | 10 | GB/T93-1987 |
| 26 | 134903022 | 右支架 | Right bracket | 1 | |
| 27 | 130301525 | 缓冲垫 | Cushion rubber | 4 | |
| 28 | 130301623 | 调整垫圈 | Adjust cushion | 4 | |
| 29 | 805300013 | 垫圈 16 | Washer 16 | 8 | GB/T97.1-2002 |
| 30 | 805300111 | 垫圈 16 | Washer 16 | 2 | GB/T96.1-2002 |
| 31 | 805000161 | 螺栓 M16×100 | Bolt M16×100 | 2 | GB/T31.1-1988 |
| 32 | 805200051 | 螺母 M16 | Nut M16 | 2 | GB/T6170-2000 |
| 33 | 134903012 | 支架 | Bracket | 1 | |
| 34 | 800100259 | 螺柱 | Bolt | 2 | 发动机带 |
| 35 | 800100258 | 垫圈 16 | Washer 16 | 2 | 发动机带 |
| 36 | 800100257 | 螺母 16 | Nut 16 | 2 | 发动机带 |
| 37 | 805000436 | 螺栓 M8×60 | Bolt M8×60 | 2 | GB/T5783-2000 |
| 38 | 805300069 | 垫圈 8 | Washer 8 | 4 | GB/T97.1-2002 |
| 39 | 805300010 | 垫圈 8 | Washer 8 | 4 | GB/T93-1987 |
| 40 | 135200702 | 板 | Plate | 1 | |
| 41 | 803000010 | 电磁阀 | Sole№id valve | 1 | 23JVD3S.1 |
| 42 | 805300025 | 垫圈 12 | Washer 12 | 2 | JBT982-1977 |
| 43 | 805000210 | 螺柱 M10×35 | Bolt M10×35 | 12 | JBT898-1988 |
| 134900817 变速箱安装 Gear Box Assembly | |||||
| 序号 | 代号 | 名称 | 数量 | 备注 | |
| № | Code | Part Description | Q’ty | Remark | |
| 32 | 130201174 | 接头 | Connector | 1 | |
| 33 | 803100665 | 接头体 E10 | Connector E10 | 1 | GB/T3750.2-1983 |
| 34 | 860114417 | 螺栓 M14×1.5 | Bolt M14×1.5 | 1 | GB/T3750.3-1983 |
| 35 | 805300024 | 垫圈 14 | Washer 14 | 1 | JB/T982-1977 |
| 36 | 805600281 | 销 4×24 | Pin 4×24 | 1 | GB/T6170-2000 |
| 37 | 805600083 | 销 B12×35 | Pin B12×35 | 3 | GB/T882-1986 |

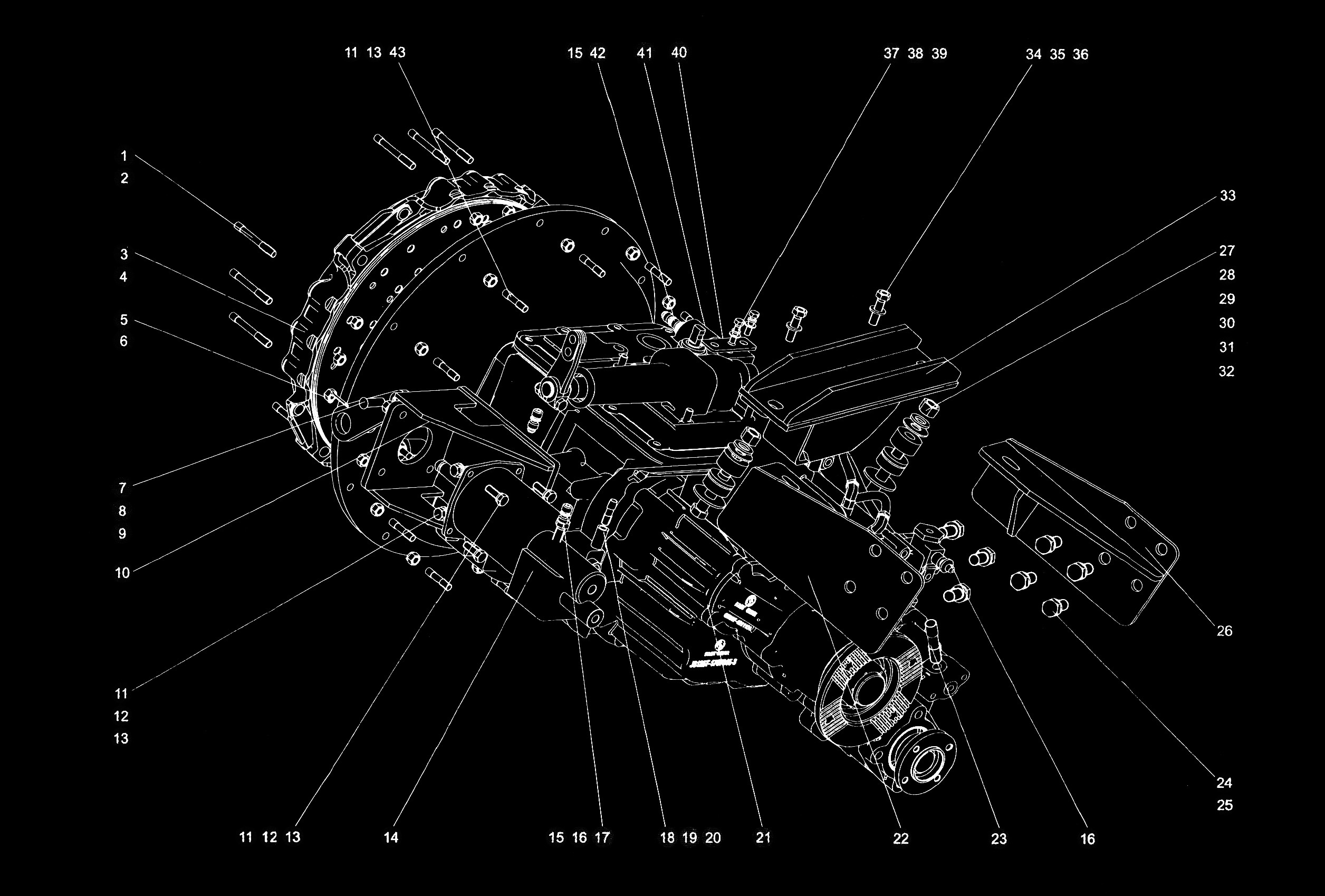

134902993 变速箱安装 Transmission Install
