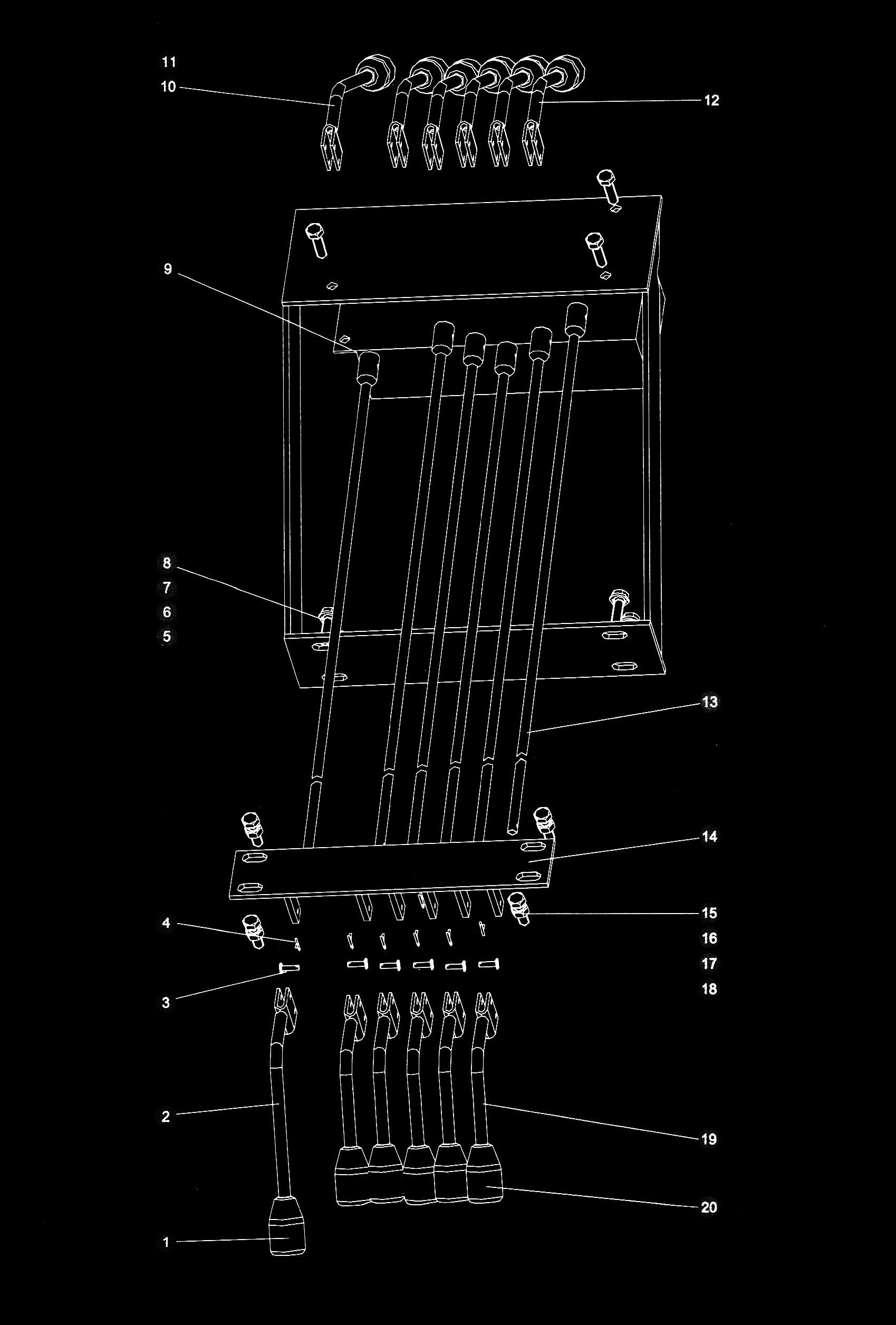

134901766 支腿操纵系统 Outrigger Operation System

Category:
序号 代号 名称 数量 备注
№ Code Part Description Q’ty Remark
1 130201148 手柄 Handle 2
2 135400754 操纵杆 Operating lever 1
3 805600067 销轴 B5×18 Pivot B5×18 24 GB/T882-1986
4 805600301 销 2×10 Pin 2×10 24 GB/T91-1986
5 805300018 垫圈 12 Washer 12 4 GB/T93-1987
6 805000048 螺栓 M12×35 Bolt M12×35 4 GB/T5783-1986
7 805300020 垫圈 12 Washer 12 4 GB/T97.1-1985
8 805200045 螺母 M8 Nut M8 6 GB/T6170-1986
9 135200498 多路阀支架 Bracket of valve 1
10 130301578 操纵杆 Operating lever 1
11 134901195 操纵杆 Operating lever 1 CE产品用时，用于取代序10
12 130301579 操纵杆 Operating lever 5
13 130200727 拉杆 Pull rod 6
14 135400425 联接架 Bracket of coupling 1
15 805000727 螺栓 M10×25 Bolt M10×25 7 GB/T5783-1986
16 805200048 螺母 M10 Nut M10 6 GB/T6170-1986
17 805300017 垫圈 10 Washer 10 4 GB/T97.1-1985
18 805300014 垫圈 10 Washer 10 7 GB/T93-1987
19 135400753 操纵杆 Operating lever 5
20 130201139 手柄 Handle 10
