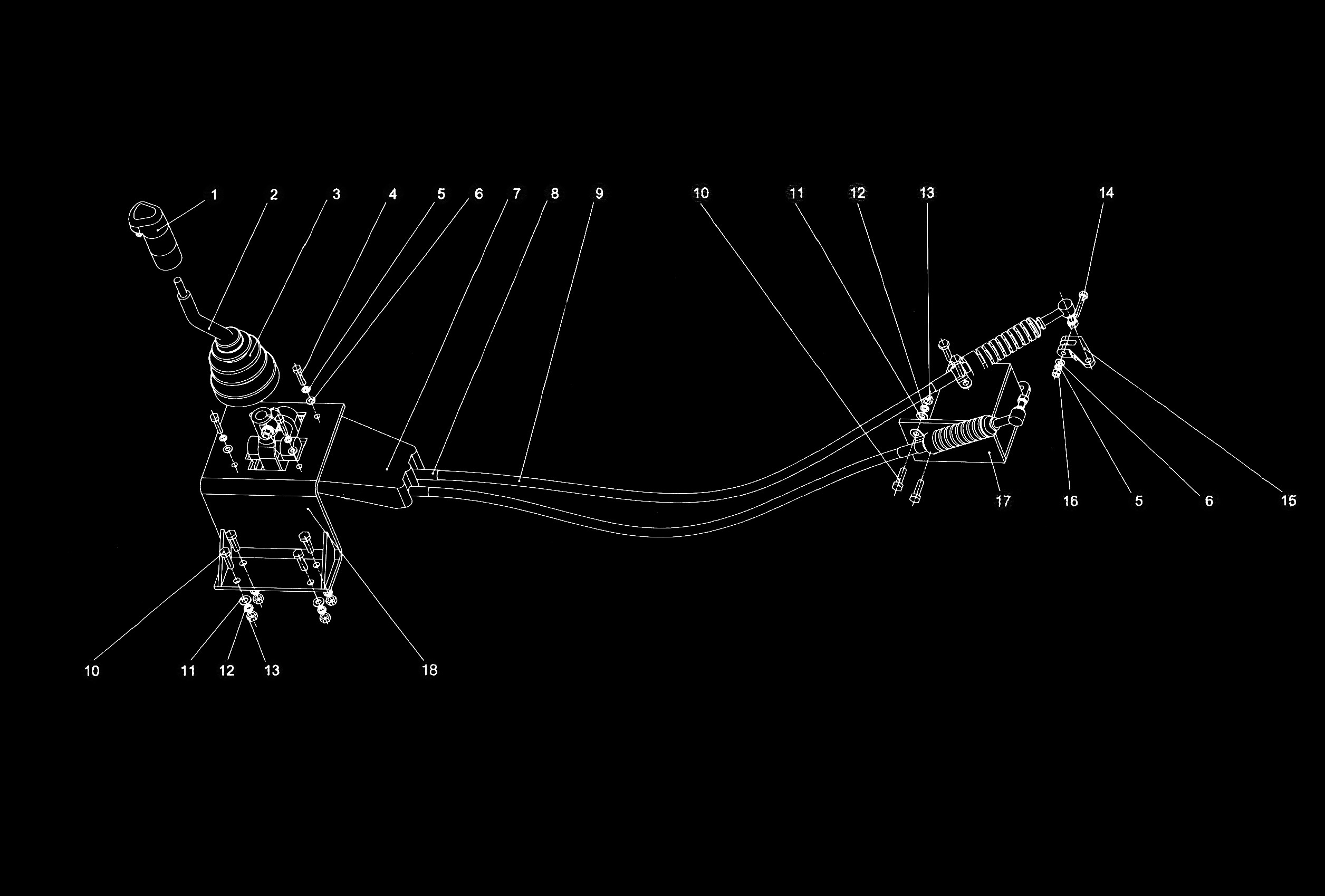

| 序号 | 代号 | 名称 | 数量 | 备注 | |
| № | Code | Part Description | Q’ty | Remark | |
| 1 | 手柄球 | Handle grip | 1 | 变速箱带 | |
| 2 | 手柄杆 | Lever | 1 | 变速操纵机构总成带 | |
| 3 | 80320006 | 防尘罩 | Dust cover | 1 | |
| 4 | 805000089 | 螺栓 M8×1.5×35 | Bolt M8×1.5×35 | 4 | GB/T5783-2000 |
| 5 | 805300010 | 垫圈 8 | Washer 8 | 5 | GB/T93-1987 |
| 6 | 805300069 | 垫圈 8 | Washer 8 | 5 | GB/T97.1-2002 |
| 7 | 控制器 | C ontroller | 1 | 变速操纵机构总成带 | |
| 8 | 801900105 | 扎带 7.6×300 | Clip bend 7.6×300 | 8 | |
| 9 | 801300113 | 变速操纵机构总成 | Transmission Operation Assembly | 1 | LJ114X3050X2900 |
| 10 | 805000062 | 螺栓 M10×35 | Bolt M10×35 | 8 | GB/T5783-2000 |
| 11 | 805300014 | 垫圈 10 | Washer 10 | 8 | GB/T93-1987 |
| 12 | 805300017 | 垫圈 10 | Washer 10 | 8 | GB/T97.1-2002 |
| 13 | 805200048 | 螺母 M10 | Nut M10 | 8 | GB/T6170-2000 |
| 14 | 805000237 | 螺栓 M8×45 | Bolt M8×45 | 1 | GB/T5783-2000 |
| 15 | 选挡摇臂 | Rocket arm | 1 | 变速操纵机构总成带 | |
| 16 | 805200045 | 螺母 M8 | Nut M8 | 1 | GB/T6170-2000 |
| 17 | 软轴支架 | Bracket | 1 | 变速操纵机构总成带 | |
| 18 | 135601328 | 支架 | Bracket | 1 | |
