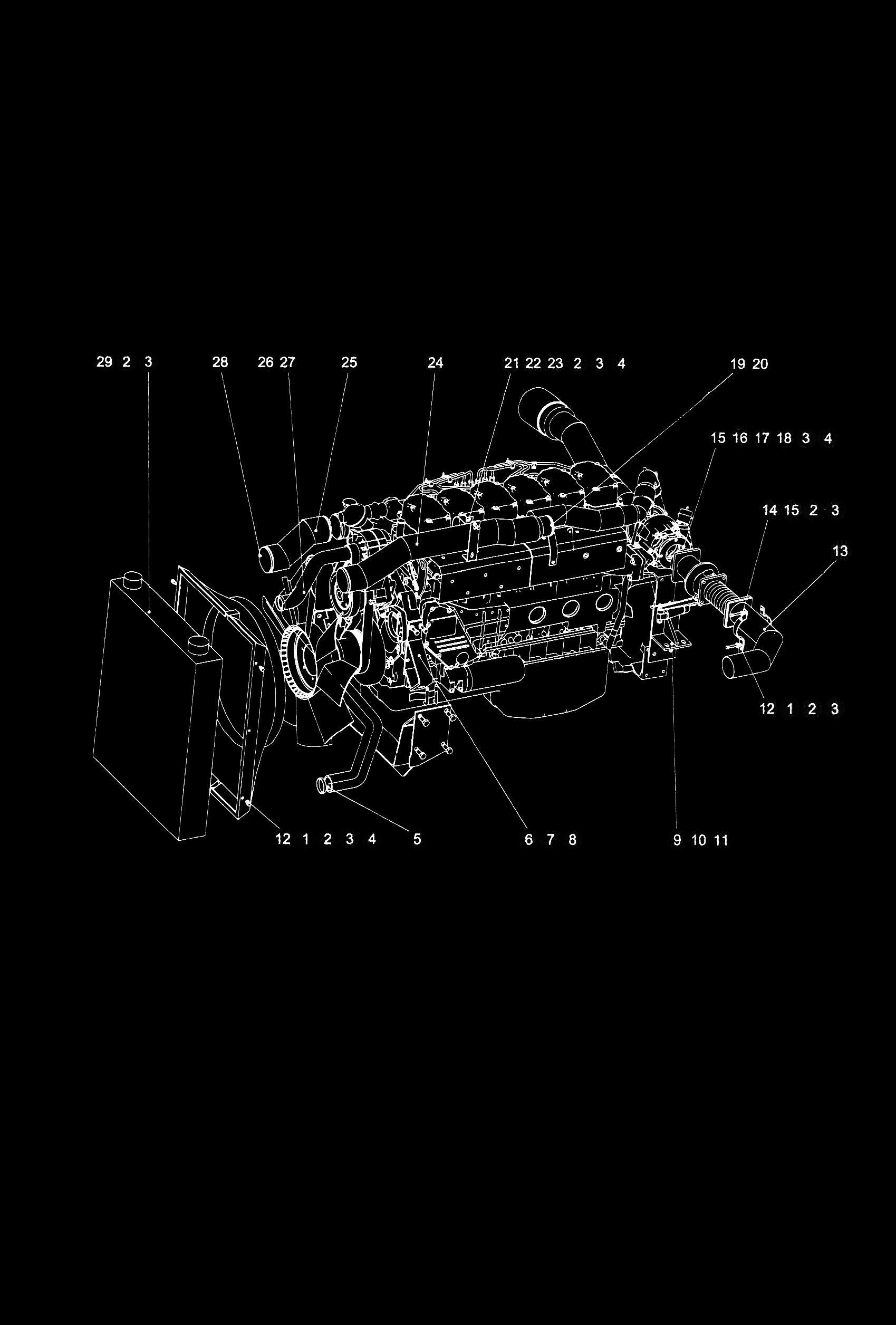

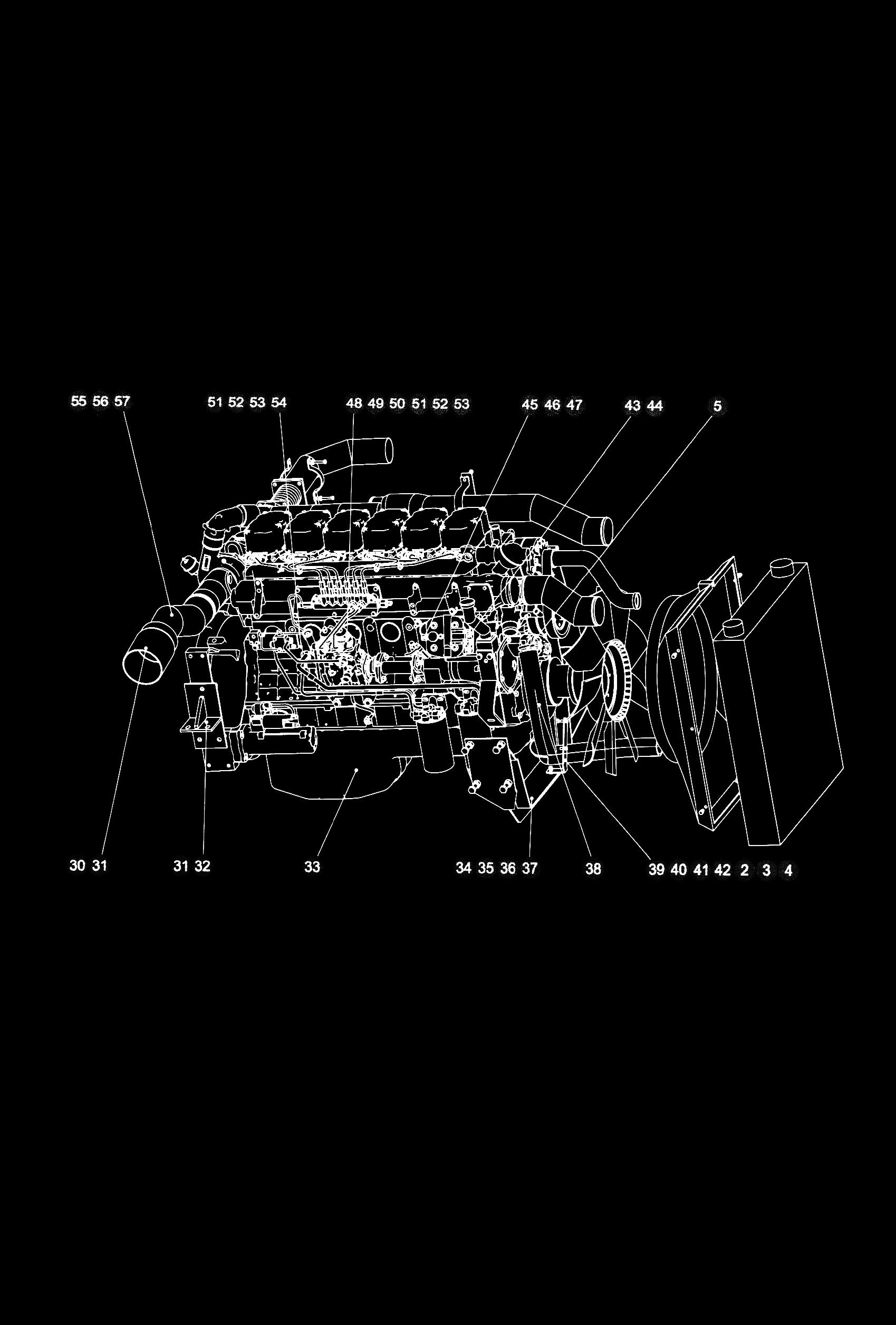

134900591 发动机安装 Engine Setup
| 序号 | 代号 | 名称 | 数量 | 备注 | |
| № | Code | Part Description | Q’ty | Remark | |
| 1 | 135800655 | 导风罩 | Air guide cover | 1 | |
| 2 | 805000018 | 螺栓 M8×20 | Bolt M8×20 | 18 | GB/T5783-1986 |
| 3 | 805300010 | 垫圈 8 | Washer 8 | 20 | GB/T93-1987 |
| 4 | 805200045 | 螺母 M8 | Nut M8 | 13 | GB/T6170-1986 |
| 5 | 801900254 | T型抱箍 Ø70 | T-hoop Ø70 | 2 | |
| 6 | 134900287 | 发动机前悬挂 | Front suspension | 1 | |
| 7 | 805300018 | 垫圈 12 | Washer 12 | 17 | GB/T93-1987 |
| 8 | 805003912 | 螺栓 M12×30 | Bolt M12×30 | 8 | GB/T5783-1986 |
| 9 | 130200152 | 后悬挂左支座 | Left-back bracket | 1 | |
| 10 | 805000254 | 螺栓 M14×1.5×30 | Bolt M14×1.5×30 | 6 | GB/T5786-1986 |
| 11 | 805300033 | 垫圈 14 | Washer 14 | 6 | GB/T93-1987 |
| 12 | 134900085 | 弯板 | Elbow plate | 1 | |
| 13 | 134900578 | 排气管总成 | Air output pipe | 1 | |
| 14 | 134900088 | 卡箍 | Hoop | 2 | |
| 15 | 270100114 | 螺栓 M8×40 | Bolt M8×40 | 2 | GB/T5783-1986 |
| 16 | 130200127 | 卡箍 | Hoop | 1 | |
| 17 | 134901201 | 衬垫 | Gasket | 1 | |
| 18 | 805200048 | 螺母 M10 | Nut M10 | 6 | GB/T6170-1986 |
| 19 | 135200539 | 接头软管 | Connector hose | 1 | |
| 20 | 801900098 | T型抱箍 Ø92 | T-hoop Ø92 | 2 | |
| 21 | 135400384 | 管夹 | Pipe clip | 1 | |
| 22 | 134900587 | 支架 | Bracket | 1 | |
| 23 | 805300069 | 垫圈 8 | Washer 8 | 4 | GB/T97.1-1985 |
| 24 | 134900579 | 中冷器进气管 | Air cooler input tubing | 1 | |
| 25 | 134900588 | 中冷器出气管 | Air cooler output tubing | 1 | |
| 26 | 134901116 | 上水管 | Water pipe | 1 | |
| 27 | 801900100 | T型抱箍 Ø60 | T-hoop Ø60 | 2 | |
| 28 | 801900251 | T型抱箍 Ø112 | T-hoop Ø112 | 8 | |
| 29 | 134100348 | 中冷器 | Charge air cooler | 1 | |
| 30 | 134902153 | 胶管 Ø152-150 | Rubber hose Ø152-150 | 1 | |
| 31 | 801900381 | T型抱箍 Ø152.4 | T-hoop Ø152.4 | 2 | |
| 32 | 800100120 | 斯太尔楔形支承 | Cuneiform support | 2 | |
| 33 | 800100060 | 发动机 | Engine | 1 | |
| 34 | 130200254 | 前悬挂支架 | Engine’s front bracket | 1 | |
| 35 | 801902674 | 螺栓 M16×35 | Bolt M16×35 | 8 | GB/T5783-1986 |
| 36 | 805201563 | 螺母 M16 | Nut M16 | 8 | GB/T6170-1986 |
| 37 | 805300011 | 垫圈 16 | Washer 16 | 8 | GB/T93-1987 |
| 38 | 135800674 | 下水管 | Water pipe | 1 | |
| 39 | 135800305 | 弯板 | Elbow plate | 1 | |
| 40 | 135800306 | 管夹 | Pipe clip | 1 | |
| 41 | 805000159 | 螺栓 M12×1.5×30 | Bolt M12×1.5×30 | 9 | GB/T5786-1986 |
| 42 | 805300020 | 垫圈 12 | Washer 12 | 9 | GB/T97.1-1985 |
| 43 | 803601013 | 端直通接头 | End straight connector | 1 | |
| 44 | 803163945 | 垫圈 27 | Washer 27 | 1 | JB/T982-1977 |
| 45 | 134900072 | 胶管 Ø22 L=1500 | Rubber hose Ø22 L=1500 | 1 | |
| 46 | 130500118 | 继电器支架 | Relay’s bracket | 1 | JB/T982-1977 |
| 47 | 801900050 | 卡箍 Ø22〜Ø32 | Hoop Ø22〜Ø32 | 2 | |
| 48 | 134901187 | 燃油管 | Fuel pipe | 1 | JB/T999-1977 |
| 49 | 134901204 | 燃油管 | Fuel pipe | 1 | |
| 50 | 135200229 | 燃油过滤器安装 | Fuel filter setting | 1 | |
| 51 | 803163503 | 垫圈 14 | Washer 14 | 4 | |
| 52 | 803107984 | 管夹 | Pipe clip | 4 | |
| 53 | 805002188 | 螺栓 M14×1.5×35 | Bolt M14×1.5×35 | 2 | |
| 54 | 134901186 | 燃油管 I | Fuel pipe I | 1 | |
| 55 | 134901185 | 进气管 | Air-in pipe | 1 | |
| 56 | 134901079 | 胶管 Ø110 L=105 | Rubber hose Ø110 L=105 | 1 | |
| 57 | 801900303 | T型抱箍 Ø123 | T-hoop Ø123 | 2 | |
