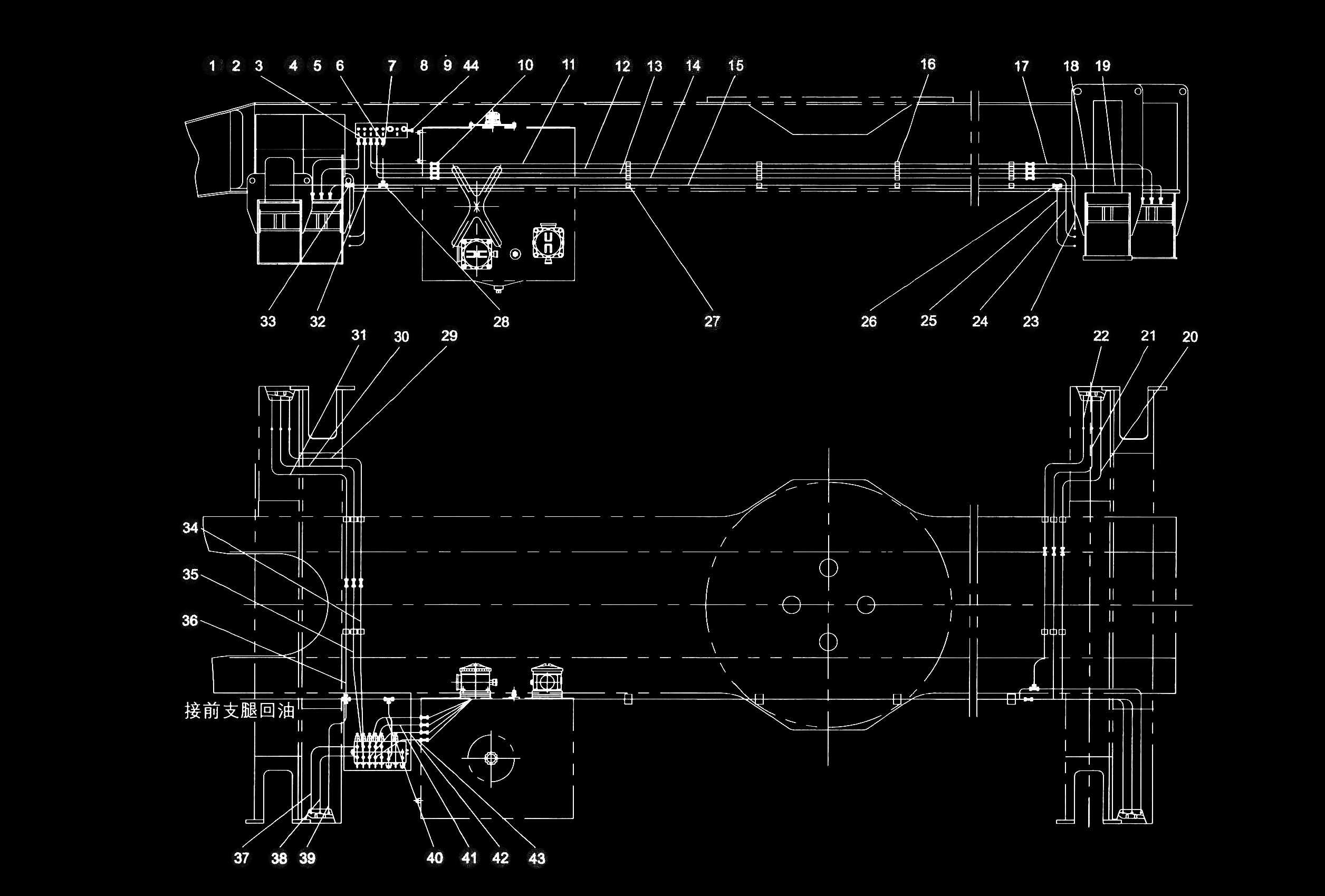

134900537 阀至支腿配管 Pipes for Vavle to Outrigger
| 序号 | 代号 | 名称 | 数量 | 备注 | |
| № | Code | Part Description | Q’ty | Remark | |
| 1 | 803192986 | 螺母 | Nut | 52 | |
| 2 | 803105530 | 卡套 | Cutting ferrule | 52 | |
| 3 | 803166497 | 接头体 | Connector | 8 | GB/T3733.2-1983 |
| 4 | 803112458 | 螺母 | Nut | 6 | |
| 5 | 803109671 | 卡套 | Cutting ferrule | 6 | |
| 6 | 803109640 | 接头体 | Connector | 1 | Q/JH3745.2-03 |
| 7 | 134900990 | 无缝管 Ø18×2 | Seamless pipe Ø18×2 | 1 | |
| 8 | 803113082 | 测压接头 | Metrical connector | 1 | 选装 |
| 9 | 803112007 | 测压接头 | Metrical connector | 1 | 选装 |
| 10 | 803105413 | 接头体 | Connector | 14 | |
| 11 | 134900991 | 无缝管 Ø12×1.5 | Seamless pipe Ø12×1.5 | 1 | |
| 12 | 134900992 | 无缝管 Ø12×1.5 | Seamless pipe Ø12×1.5 | 1 | |
| 13 | 134900993 | 无缝管 Ø12×1.5 | Seamless pipe Ø12×1.5 | 1 | |
| 14 | 134900994 | 无缝管 Ø12×1.5 | Seamless pipe Ø12×1.5 | 1 | |
| 15 | 134900995 | 无缝管 Ø18×2 | Seamless pipe Ø18×2 | 1 | |
| 16 | 803108188 | 管夹 | Clip | 28 | |
| 17 | 134900996 | 无缝管 Ø12×1.5 | Seamless pipe Ø12×1.5 | 1 | |
| 18 | 134900997 | 无缝管 Ø12×1.5 | Seamless pipe Ø12×1.5 | 1 | |
| 19 | 134900998 | 无缝管 Ø12×1.5 | Seamless pipe Ø12×1.5 | 1 | |
| 20 | 134900999 | 无缝管 Ø12×1.5 | Seamless pipe Ø12×1.5 | 1 | |
| 21 | 134901000 | 无缝管 Ø12×1.5 | Seamless pipe Ø12×1.5 | 1 | |
| 22 | 134901001 | 无缝管 Ø12×1.5 | Seamless pipe Ø12×1.5 | 1 | |
| 23 | 134901002 | 无缝管 Ø12×1.5 | Seamless pipe Ø12×1.5 | 1 | |
| 24 | 134901003 | 无缝管 Ø12×1.5 | Seamless pipe Ø12×1.5 | 1 | |
| 25 | 134901004 | 无缝管 Ø12×1.5 | Seamless pipe Ø12×1.5 | 1 | |
| 26 | 803102210 | 接头体 | Connector | 1 | |
| 27 | 803108050 | 管夹 | Clip | 4 | |
| 28 | 803102209 | 接头体 18L | Connector 18L | 1 | Q/JH3745.2-03 |
| 29 | 134901005 | 无缝管 Ø12×1.5 | Seamless pipe Ø12×1.5 | 1 | |
| 30 | 134901006 | 无缝管 Ø12×1.5 | Seamless pipe Ø12×1.5 | 1 | |
| 31 | 134901007 | 无缝管 Ø12×1.5 | Seamless pipe Ø12×1.5 | 1 | |
| 32 | 134901008 | 无缝管 Ø18×2 | Seamless pipe Ø18×2 | 1 | |
| 33 | 803107522 | 接头体 | Connector | 1 | |
| 34 | 134901009 | 无缝管 Ø12×1.5 | Seamless pipe Ø12×1.5 | 1 | |
| 35 | 134901010 | 无缝管 Ø12×1.5 | Seamless pipe Ø12×1.5 | 1 | |
| 36 | 134901011 | 无缝管 Ø12×1.5 | Seamless pipe Ø12×1.5 | 1 | |
| 37 | 134901012 | 无缝管 Ø12×1.5 | Seamless pipe Ø12×1.5 | 1 | |
| 38 | 134901013 | 无缝管 Ø12×1.5 | Seamless pipe Ø12×1.5 | 1 | |
| 39 | 134901014 | 无缝管 Ø12×1.5 | Seamless pipe Ø12×1.5 | 1 | |
| 40 | 134901015 | 无缝管 Ø12×1.5 | Seamless pipe Ø12×1.5 | 1 | |
| 41 | 134901016 | 无缝管 Ø12×1.5 | Seamless pipe Ø12×1.5 | 1 | |
| 42 | 134901017 | 无缝管 Ø12×1.5 | Seamless pipe Ø12×1.5 | 1 | |
| 43 | 134901018 | 无缝管 Ø12×1.5 | Seamless pipe Ø12×1.5 | 1 | |
| 44 | 803106915 | 测压接头 | Metrical Connector | 1 | 选装 |
