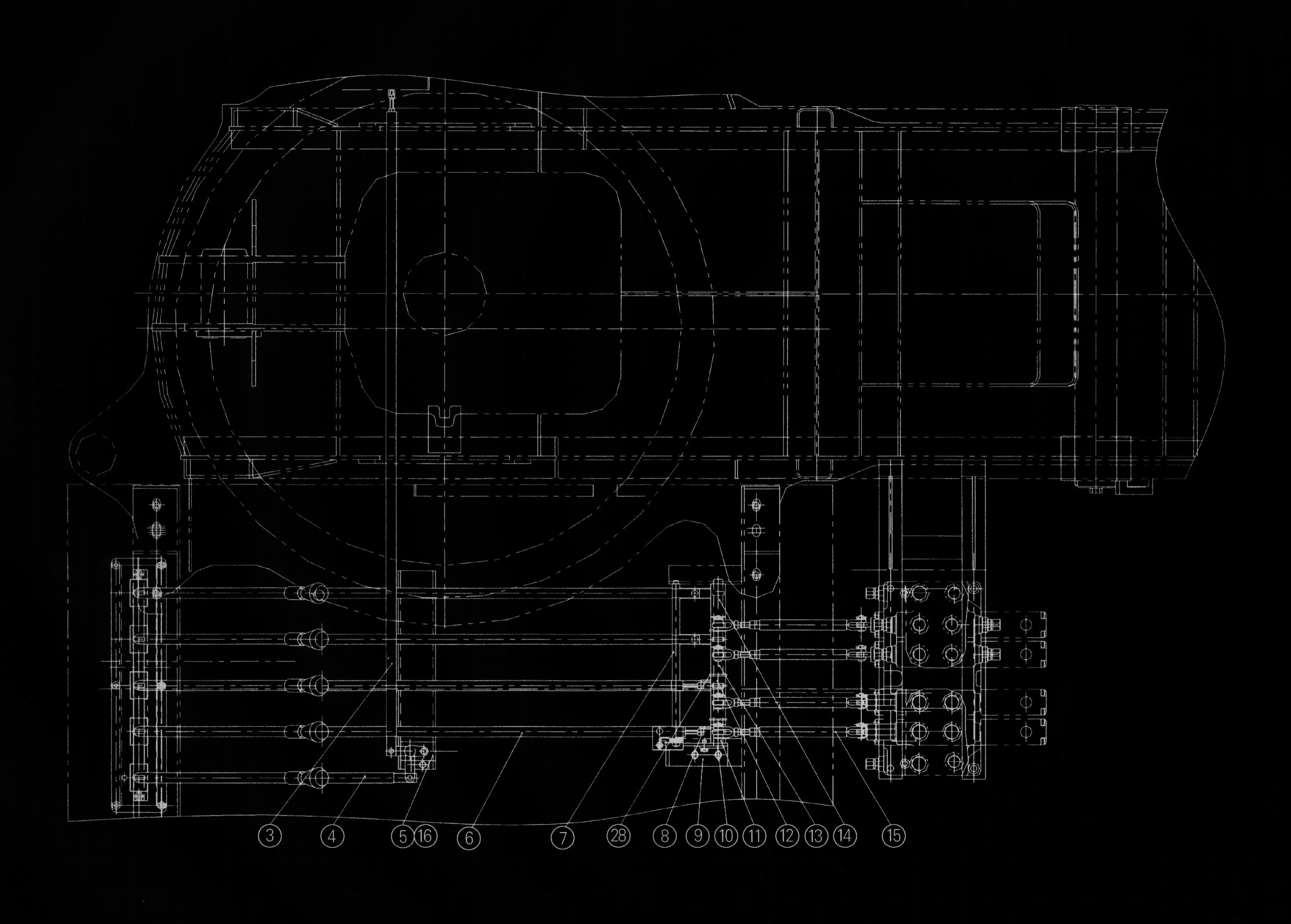

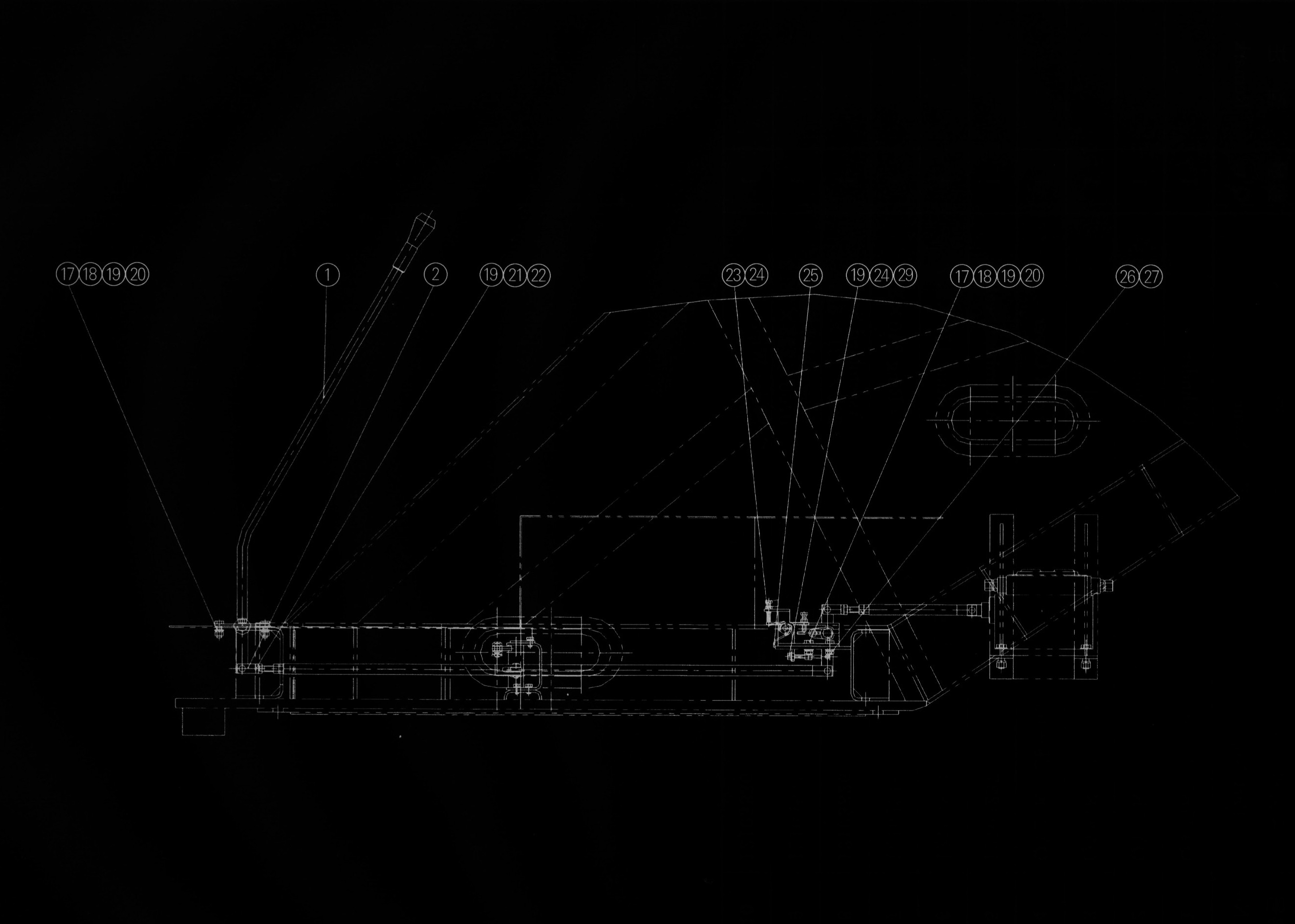

QY25K5 – 12104892 转台操纵 Diagram For Operating Turntable
| 序号 | 零部件代号 | 名称 | 数量 | 备注 | |
| Sr, No. | Part No. | Part name | Q’ ty | Remark | |
| 1 | 01501007 | 操纵杆总成 | Lever assembly | 1 | |
| 2 | 01501008 | 连接体 | Connecting body | 10 | |
| 3 | 01827010 | 拉杆总成 | Pulling rod assembly | 1 | |
| 4 | 01827012 | 拉杆总成 | Pulling rod assembly | 1 | |
| 5 | 01827014 | 转套 | Shaft sleeve | 1 | |
| 6 | 01827021 | 转轴 | Shaft | 1 | |
| 7 | 01827023 | 拉杆总成 | Pulling rod assembly | 4 | |
| 8 | 01501057 | 螺母杆 | Nut rod | 2 | |
| 9 | 01827026 | 支架 | Bracket | 1 | |
| 10 | 01501047 | 转轴 | Shaft | 1 | |
| 11 | 01501036 | 转套 | Shaft sleeve | 1 | |
| 12 | 01501040 | 转套 | Shaft sleeve | 1 | |
| 13 | 01501042 | 转套 | Shaft sleeve | 1 | |
| 14 | 01501045 | 转套 | Shaft sleeve | 1 | |
| 15 | 12104892 | 拉杆总成 | Pulling rod assembly | 4 | |
| 16 | 01827039 | 槽钢 | Channel steel | 1 | |
| 17 | 10410038 | 螺栓 M10×30 | Bolt M10×30 | 10 | |
| 18 | 10440006 | 垫圈 10 | Washer 10 | 10 | |
| 19 | 10440009 | 垫圈 10 | Washer 10 | 29 | |
| 20 | 10430004 | 螺母 M10 | Nut M10 | 8 | |
| 21 | 10471067 | 销轴 B10×35 | Pin shaft B10×35 | 19 | |
| 22 | 10470001 | 销 3.2×20 | Pin 3.2×20 | 19 | |
| 23 | 10410140 | 螺栓 M8×40 | Bolt M8×40 | 3 | |
| 24 | 10430001 | 螺母 M8 | Nut M8 | 3 | |
| 25 | 11410404 | 弹簧 | Spring | 1 | |
| 26 | 10470322 | 销 2×16 | Pin 2×16 | 2 | |
| 27 | 10440021 | 垫圈 6 | Washer 6 | 2 | |
| 28 | 10440121 | 垫圈 20 | Washer 20 | 3 | |
| 29 | 10410563 | 螺栓 M8×60 | Bolt M8×60 | 2 | |
