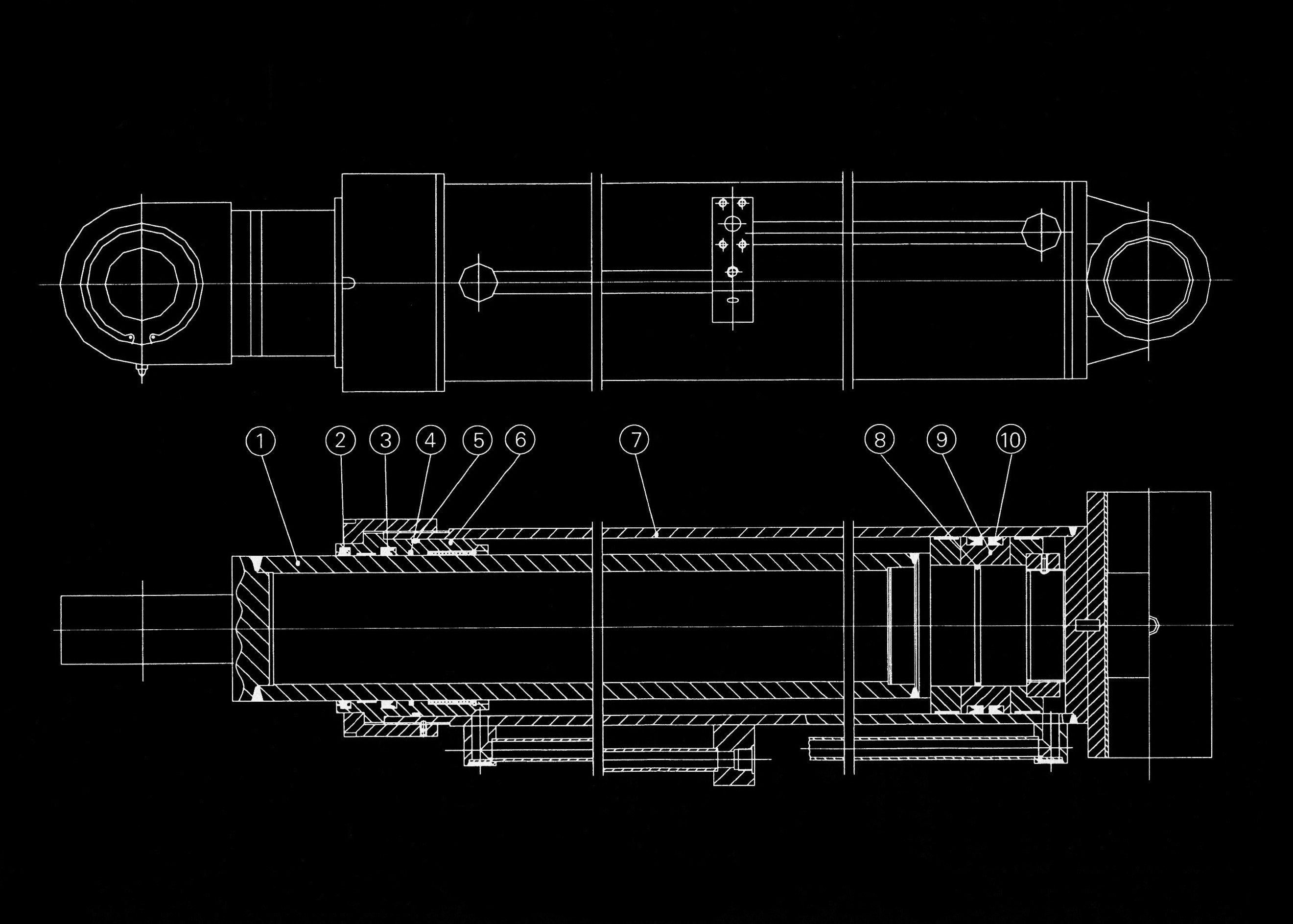

11414293 变幅油缸 Elevating Cylinder
| 序号 | 代号 | 名称 | 数量 | 备注 | |
| № | Part No. | Part Description | Q’ty | Remark | |
| 1 | 12103978 | 活塞杆 | Rod | 1 | |
| 2 | 12103979 | 防尘圈 d180×193×7×9.5 | Series Wiper d180×193×7×9.5 | 1 | |
| 3 | 12103980 | 杆密封 180×200×12 | Rod-Seal 180×200×12 | 1 | |
| 4 | 12103981 | 斯特封 d180×195.5×5.9 | Assembled Seal d180×195.5×5.9 | 1 | |
| 5 | 12103982 | O型圈 220×8.6 | O-ring 220×8.6 | 1 | |
| 6 | 12103983 | 导向套 | Front Cover | 1 | |
| 7 | 12103984 | 缸筒 | Cylinder | 1 | |
| 8 | 12101424 | O型圈 150×5.7 | O-ring 150×5.7 | 1 | |
| 9 | 12103985 | 活塞 | Piston | 1 | |
| 10 | 12103986 | Yx密封圏 D220×195×16 | Y-Seal D220×195×16 | 2 | |
