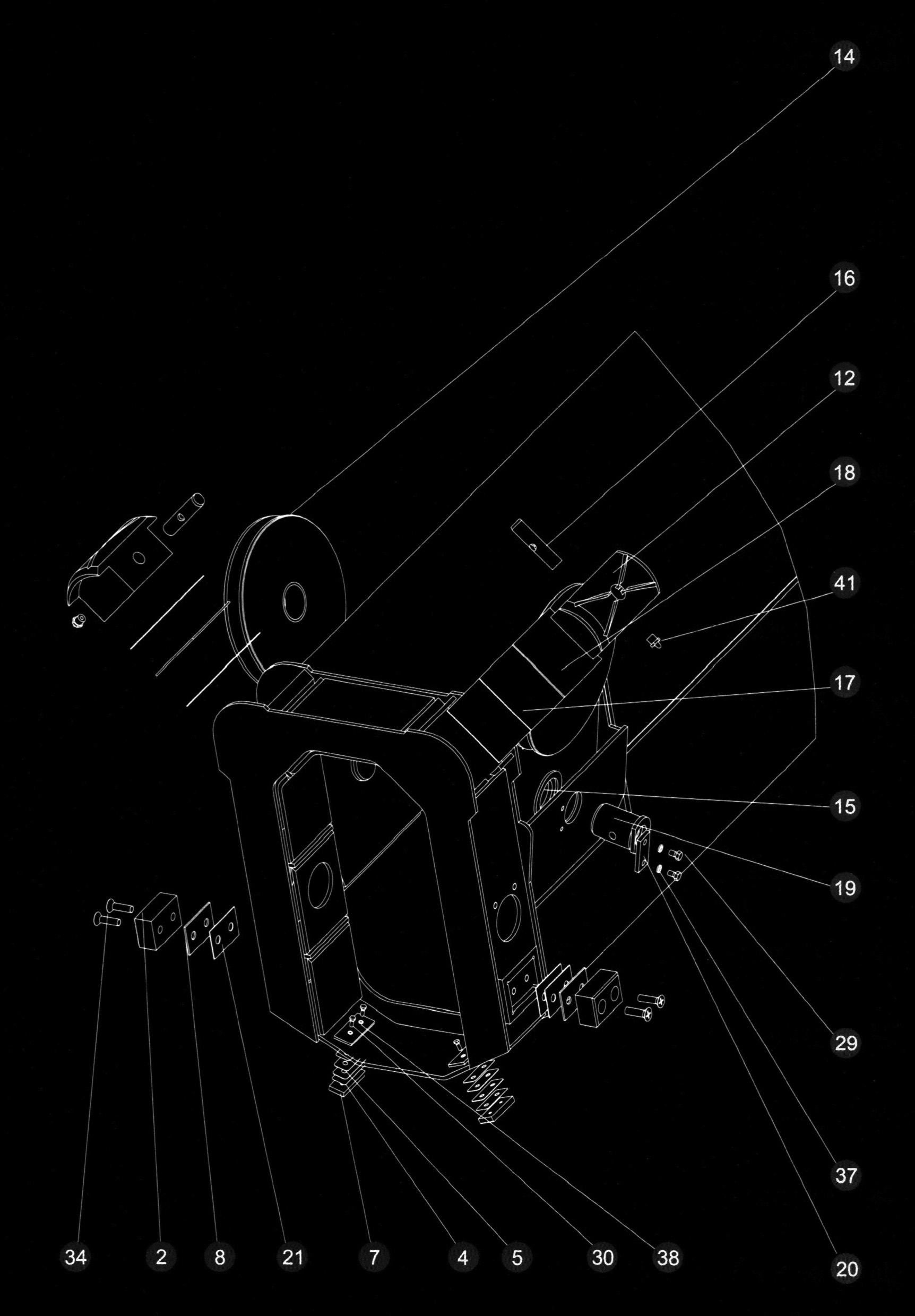

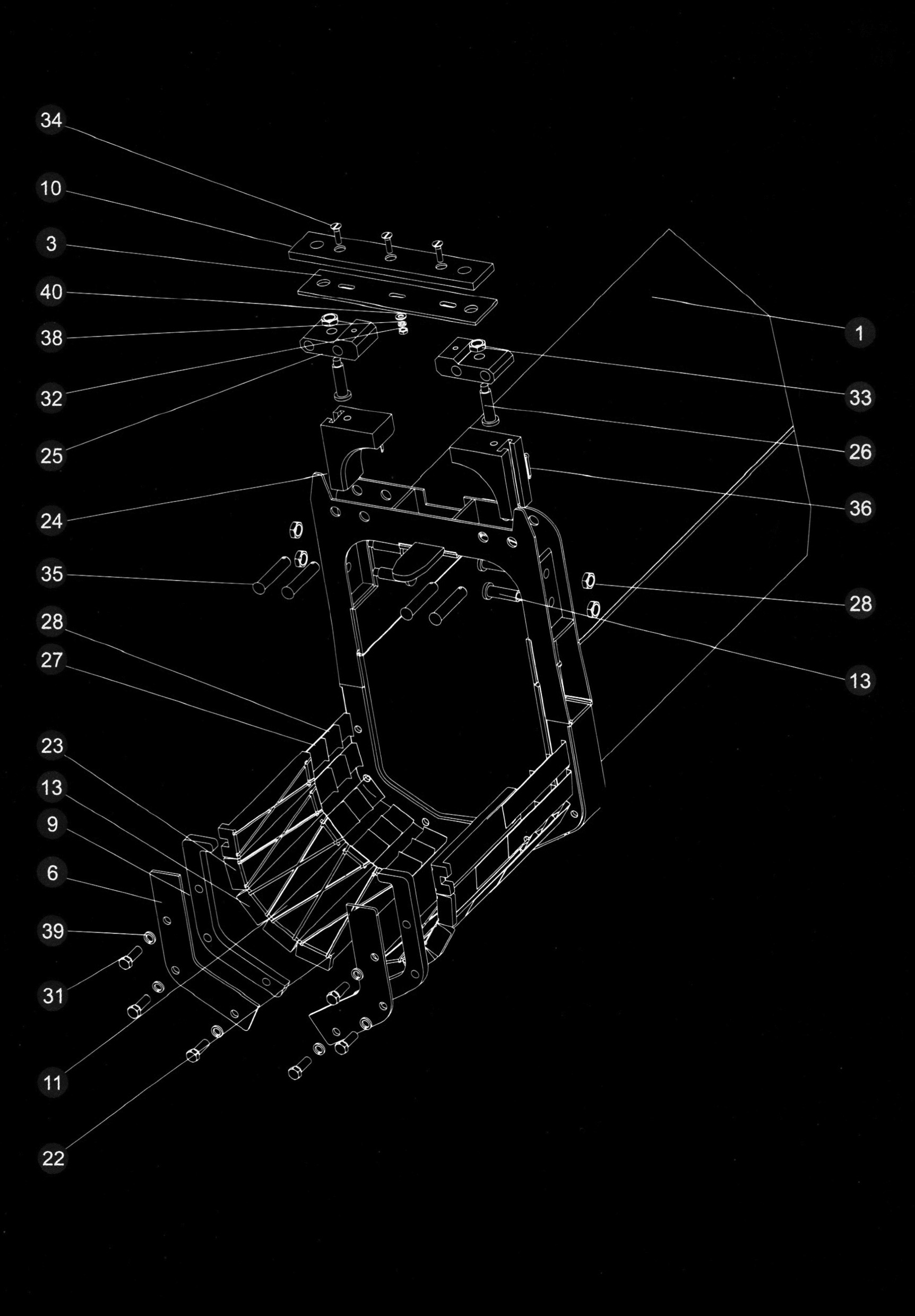

111202558 二节臂总成 The 2nd Section
| 序号 | 零部件代号 | 名称 | 数量 | 备注 | |
| Sr, No. | Part No. | Partname | Q’ ty | Remark | |
| 1 | 111202559 | 二节臂结构 | 2nd Section Structure | 1 | |
| 2 | 111202560 | 滑块 | Slider | 2 | |
| 3 | 111202561 | 板 | Plate | 1 | |
| 4 | 111202562 | 垫板 | Plate | 2 | |
| 5 | 111202563 | 垫板 | Plate | 2 | |
| 6 | 111202564 | 板 | Plate | 2 | |
| 7 | 111202565 | 滑块 | Slider | 2 | |
| 8 | 111202566 | 垫片 | Mat | 4 | |
| 9 | 111202567 | 垫板 | Plate | 2 | |
| 10 | 111202568 | 滑板 | Plate | 1 | |
| 11 | 111202569 | 滑块 | Slider | 2 | |
| 12 | 111202570 | 滑块 | Slider | 2 | |
| 13 | 111202571 | 滑块 | Slider | 4 | |
| 14 | 111202572 | 滑轮总成 | Pulley Assemble | 2 | |
| 15 | 111202574 | 隔套 | Sleeve | 4 | |
| 16 | 111202575 | 销轴 | Pin Shaft | 2 | |
| 17 | 111202576 | 垫板 | Plate | 2 | |
| 18 | 111202577 | 垫板 | Plate | 2 | |
| 19 | 111202578 | 销轴 | Pin Shaft | 2 | |
| 20 | 111202579 | 挡轴板 | Baffles | 2 | |
| 21 | 111202580 | 垫片 | Plate | 2 | |
| 22 | 111202687 | 滑块 | Slider | 1 | |
| 23 | 111202688 | 滑块 | Slider | 4 | |
| 24 | 111202691 | 滑块 | Slider | 2 | |
| 25 | 111202698 | 支撑块 | Support Block | 2 | |
| 26 | 111202699 | 螺栓 | Bolt | 6 | |
| 27 | 111202707 | 调整垫片 | Adjust Mat | 2 | |
| 28 | 111202708 | 调整垫片 | Adjust Mat | 11 | |
| 29 | 805000018 | 螺栓 M8×20 | Bolt M8×20 | 4 | GB/T5783-2000 |
| 30 | 805000008 | 螺栓 M6×12 | Bolt M6×12 | 4 | GB/T5783-2000 |
| 31 | 805000023 | 螺栓 M12×50 | Bolt M12×50 | 6 | GB/T5783-2000 |
| 32 | 805200163 | 螺母 M8 | Nut M8 | 1 | GB/T6170-1986 |
| 33 | 805200116 | 螺母 M16 | Nut M16 | 6 | GB/T6172-2000 |
| 34 | 805100107 | 螺钉 M8×25 | Screw M8×25 | 7 | GB/T819-2000 |
| 35 | 805600105 | 销 B16×140 | Pin B16×140 | 4 | GB/T882-1996 |
| 36 | 805600006 | 销 3.2×30 | Pin 3.2×30 | 4 | GB/T91-2000 |
| 37 | 805300190 | 垫圈 6 | Washer 6 | 4 | GB/T93-1987 |
| 38 | 805300090 | 垫圈 8 | Washer 8 | 5 | GB/T93-1987 |
| 39 | 805300018 | 垫圈 12 | Washer 12 | 6 | GB/T93-1987 |
| 40 | 805300089 | 垫圈 8 | Washer 8 | 1 | GB/T97.1-2002 |
| 41 | 801100336 | 油杯 M10×1 | Oil cup M10×1 | 4 | JB/T7940_1-1995 |
