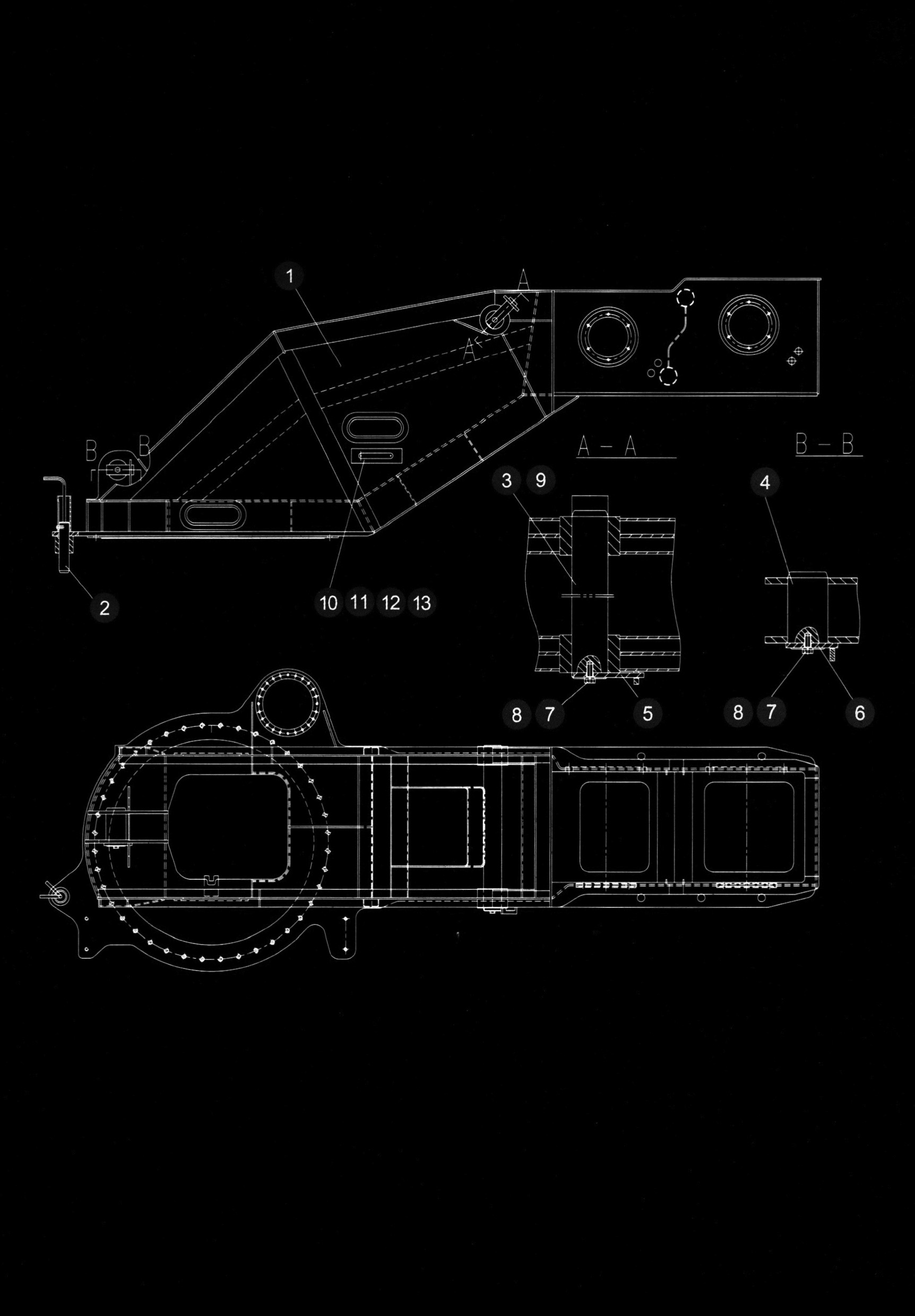

111202272 转台 Turntable
| 序号 | 零部件代号 | 名称 | 数量 | 备注 | |
| Sr, No. | Part No. | Partname | Q’ ty | Remark | |
| 1 | 111200223 | 转台结构 | Turntable Assy | 1 | |
| 2 | 110500362 | 销 | Pin | 1 | |
| 3 | 111202684 | 轴 | Shaft | 1 | |
| 4 | 111202090 | 轴 | Shaft | 1 | |
| 5 | 110500365 | 压板 | Clamping plate | 1 | |
| 6 | 110500366 | 压板 | Clamping plate | 1 | |
| 7 | 805005209 | 螺栓 M16×35 | Bolt M16×35 | 2 | |
| 8 | 805300092 | 垫圈 16 | Washer 16 | 2 | |
| 9 | 801100336 | 油杯 M10×1 | Oil cup M10×1 | 2 | |
| 10 | 111204940 | 支架 | Holder | 1 | |
| 11 | 805000018 | 螺栓 M8×20 | Bolt M8×20 | 4 | |
| 12 | 805334202 | 垫圈 8 | Washer 8 | 4 | |
| 13 | 805300069 | 垫圈 8 | Washer 8 | 4 | |
