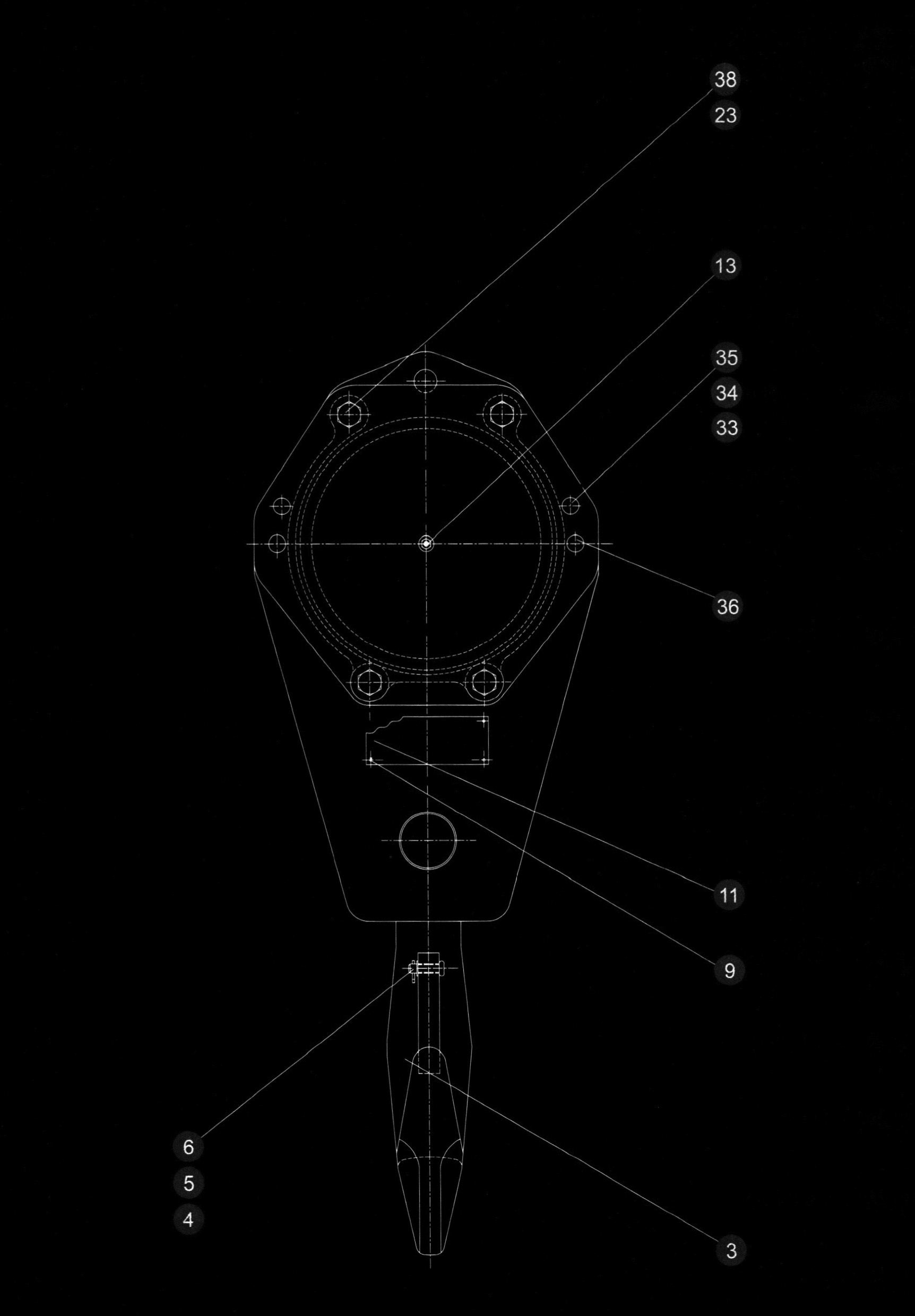

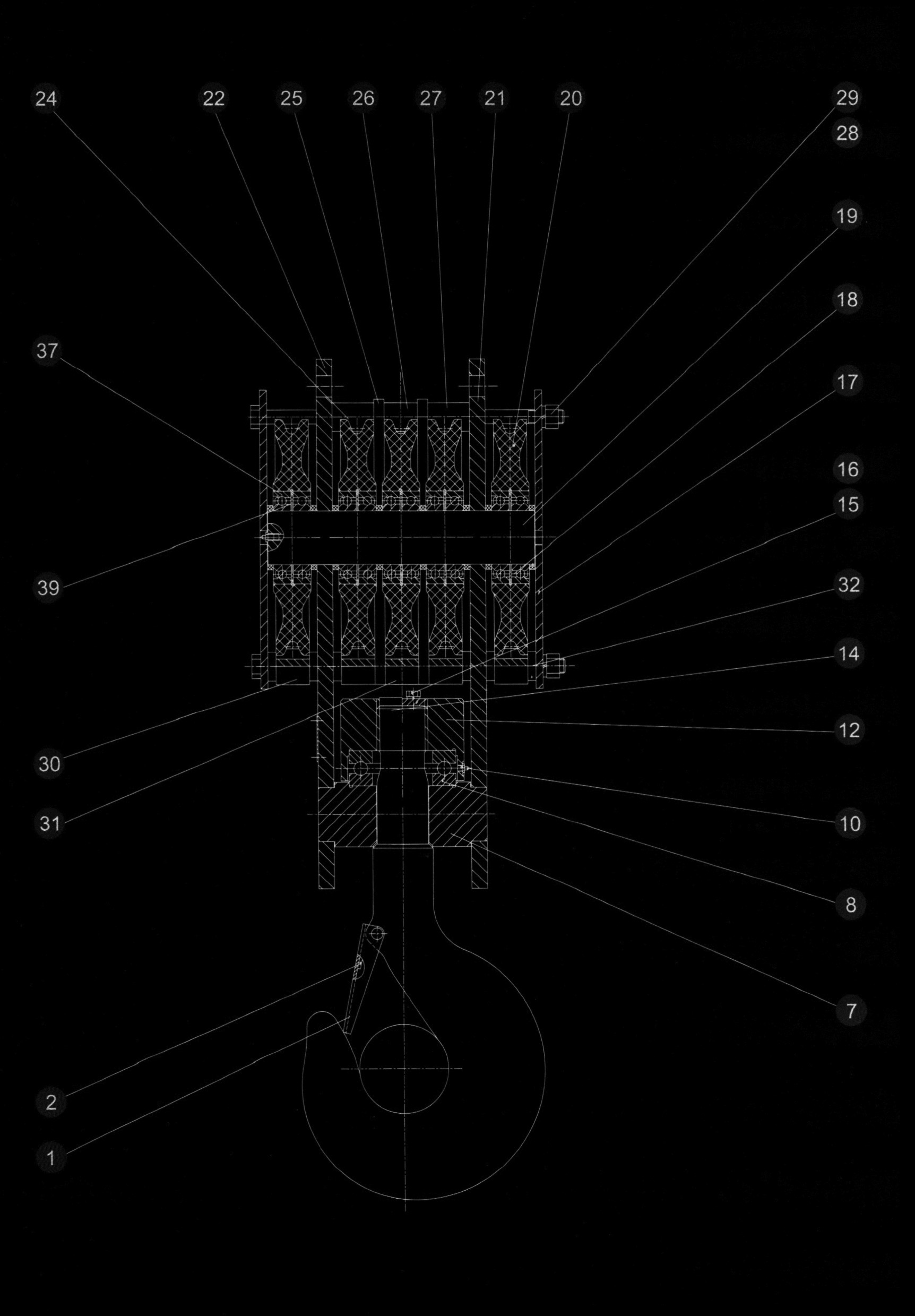

111201876 主起重钩 Hook
| 序号 | 零部件代号 | 名称 | 数量 | 备注 | |
| Sr, No. | Part No. | Partname | Q’ ty | Remark | |
| 1 | QY16K.01-1 | 挡板 | Plate | 1 | |
| 2 | QY16K.01-2 | 弹簧 | Spring | 1 | |
| 3 | QY16K.01-3 | 吊钩 | Hook | 1 | |
| 4 | 805600293 | 销轴 B8×75 | Pin Shaft B8×75 | 1 | GB/T882-1986 |
| 5 | 805600001 | 销 3.2×20 | Pin 3.2×20 | 1 | GB/T91-2000 |
| 6 | 805300069 | 垫圈 8 | Washer 8 | 1 | GB/T97.1-2002 |
| 7 | QY25K.01-1 | 横梁 | Cross Beam | 1 | |
| 8 | 800500144 | 轴承 51317 | Bearing 51317 | 1 | GB/T301-1995 |
| 9 | 805500045 | 铆钉 3×6 | Rivet 3×6 | 4 | GB/T827-1986 |
| 10 | 801100337 | 油杯 M8×1 | Oil Cup M8×1 | 1 | JB/T7940.1-1995 |
| 11 | QY25K.01-2 | 标牌 | Scutcheon | 1 | |
| 12 | QY16K.01-6 | 圆螺母 | Nut | 1 | |
| 13 | 801100336 | 油杯 M10×1 | Oil Cup M10×1 | 1 | JB/T7940.1-1995 |
| 14 | QY16K.01-7 | 防松板 | Plate | 1 | |
| 15 | 805000048 | 螺栓 M12×35 | Bolt M12×35 | 1 | GB/T5783-2000 |
| 16 | 805300018 | 垫圈 12 | Washer 12 | 1 | GB/T93-1987 |
| 17 | QY25K.01-3 | 外侧板 | Plate | 2 | |
| 18 | QY16K.01-9 | 隔环 | Separate Ring | 8 | |
| 19 | QY25K.01.4 | 滑轮轴 | Pulley Shaft | 1 | |
| 20 | QY16K.01.12 | 滑轮总成 | Pulley Unit | 5 | |
| 21 | QY25K.01-5 | 右内侧板 | Plate | 1 | |
| 22 | QY25K.01-6 | 左内侧板 | Plate | 1 | |
| 23 | QY25K.01-8 | 钢管 Ø40X41=192 | Steel Tube Ø40X41=192 | 4 | |
| 24 | QY16K.01-20 | 防护板 | Plate | 4 | |
| 25 | QY16K.01-16 | 钢管 Ø40X41=46 | Steel Tube Ø40X41=46 | 2 | |
| 26 | QY16K.01-17 | 钢管 Ø40X41=57 | Steel Tube Ø40X41=57 | 4 | |
| 27 | 805300023 | 垫圈 20 | Washer 20 | 4 | GB/T93-1987 |
| 28 | 805200052 | 螺母 M20 | Nut M20 | 4 | GB/T6170-2000 |
| 29 | QY25K.01-9 | 钢管 Ø40X41=69 | Steel Tube Ø40X41=69 | 4 | |
| 30 | QY16K.01-19 | 导绳块 | Guide Rope | 5 | |
| 31 | QY16K.01-18 | 垫圈 | Washer | 12 | |
| 32 | 805600219 | 销 3.2×40 | Pin 3.2×40 | 6 | GB/T91-2000 |
| 33 | QY25K.01-12 | 销 | Pin | 2 | |
| 34 | QY25K.01.10 | 防护装置 | Guard | 4 | |
| 35 | QY25K.01.11 | 防护装置 | Guard | 2 | |
| 36 | 800500089 | 轴承 6215-Z | Bearing 6215-Z | 10 | GB/T276-1994 |
| 37 | 805400024 | 挡圈 130 | Retaining Ring 130 | 5 | GB/T893.1-1986 |
| 38 | 111201845 | 标牌 | Scutcheon | 1 | 英文，用于出口 |
