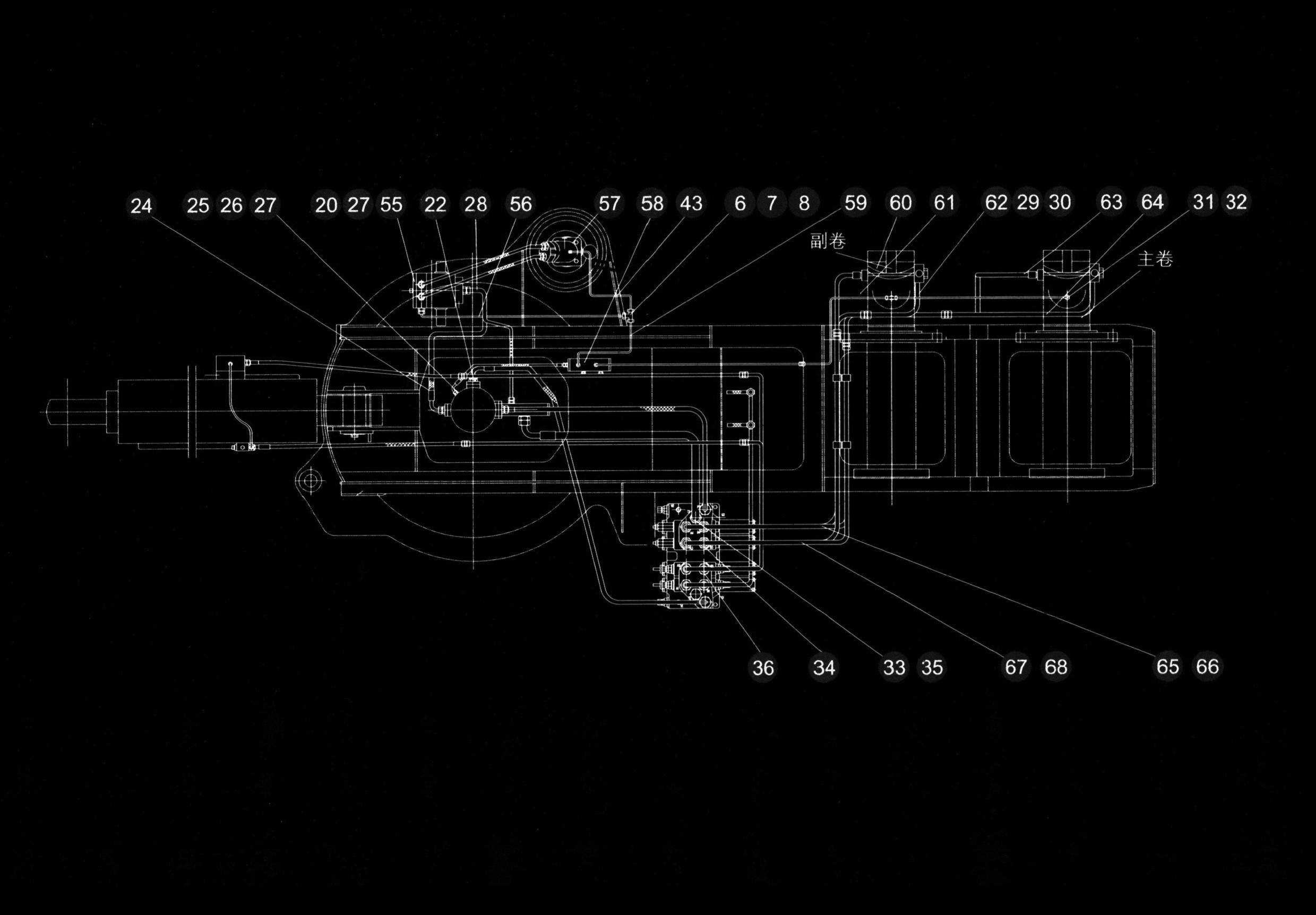

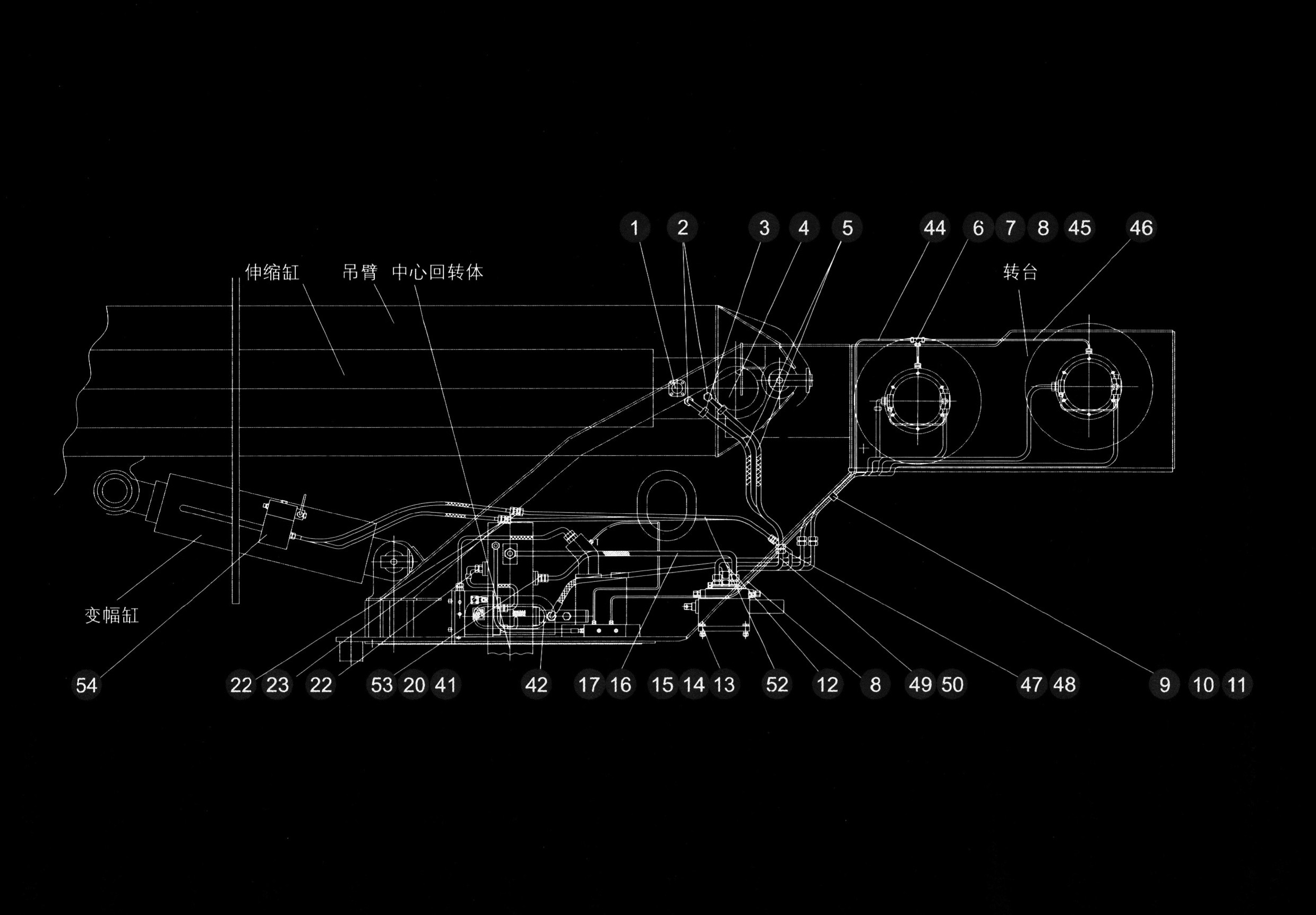

111201472 上车液压系统管路 Hydraulic System Pipeline of Crane
| 序号 | 零部件代号 | 名称 | 数量 | 备注 | |
| Sr, No. | Part No. | Partname | Q’ ty | Remark | |
| 1 | 801100244 | O型圈 28×2.65G | O-ring 28×2.65G | 4 | |
| 2 | 805000626 | 螺栓 G3/4×50 | Bolt G3/4×50 | 2 | |
| 3 | 803108117 | 管夹总成 | Pipe Clip | 4 | |
| 4 | 801900200 | 安装导轨 L=60 | Track L=60 | 2 | |
| 5 | 803103337 | 胶管接头 | Hose | 2 | |
| 6 | 803162089 | 管接头 10L | Fitting 10L | 1 | |
| 7 | 805200412 | 螺母 10L | Nut 10L | 4 | |
| 8 | 803162084 | 卡套 10L | Cutting Ring 10L | 4 | |
| 9 | 803104549 | 管接头 15L | Fitting 15L | 1 | |
| 10 | 803108116 | 管夹总成 | Pipe Clip | 8 | |
| 11 | 803108122 | 管夹总成 | Pipe Clip | 4 | |
| 12 | 803113431 | 胶管接头 | Hose | 1 | |
| 13 | 805000716 | 螺栓 M12×30 | Bolt M12×30 | 4 | |
| 14 | 805300018 | 垫圈 12 | Washer 12 | 4 | |
| 15 | 805200049 | 螺母 M12 | Nut M12 | 4 | |
| 16 | 803103334 | 胶管接头 | Hose | 1 | |
| 17 | 803103335 | 胶管接头 | Hose | 1 | |
| 18 | 805300014 | 垫圈 10 | Washer 10 | 11 | |
| 19 | 803104931 | 法兰 | Flange | 2 | |
| 20 | 803303064 | 接头体 | Fitting | 1 | |
| 21 | 803301632 | 胶管接头 | Hose | 1 | |
| 22 | 803162095 | 管接头 G14 | Fitting G14 | 1 | |
| 23 | 803110070 | 软管总成 | Hose | 7 | |
| 24 | 803194910 | 接头体 | Fitting | 1 | |
| 25 | 803101070 | 接头体 | Fitting | 1 | |
| 26 | 803168889 | 接头体 42L/22L/42L | Fitting 42L/22L/42L | 2 | JHEW3733.2-83 |
| 27 | 805100271 | 螺钉 M4×16 | Screw M4×16 | 1 | |
| 28 | 803161979 | 胶管接头 | Hose | 1 | |
| 29 | 803110083 | 螺母 | Nut | 26 | |
| 30 | 803110055 | 卡套 | Cutting Ring | 26 | |
| 31 | 803112455 | 螺母 | Nut | 8 | |
| 32 | 803110164 | 卡套 | Cutting Ring | 8 | |
| 33 | 803000422 | 多路阀 | Multiple Unit Valve | 1 | |
| 34 | 803110074 | 接头体 | Fitting | 8 | |
| 35 | 803100455 | 接头体 | Fitting | 1 | |
| 36 | 803107540 | 接头体 | Fitting | 2 | |
| 37 | 803009905 | 散热器 | Radiator | 1 | |
| 38 | 803105182 | 胶管接头 | Hose | 1 | |
| 39 | 805000727 | 螺栓 M10×25 | Bolt M10×25 | 3 | |
| 40 | 803169124 | 法兰 | Flange | 2 | |
| 41 | 805100036 | 螺钉 M10×25 | BoltM M10×25 | 4 | |
| 42 | 801100559 | O形圈 47.22×3.53 | O-ring 47.22×3.53 | 1 | |
| 43 | 803104118 | 树脂软管 | Tube | 1 | |
| 44 | 111201475 | 无缝管中 Ø15×2 | Seamless Tube Ø15×2 | 1 | QY25K. 13II.1-1 |
| 45 | 111201476 | 无缝管 Ø15×2 | Seamless Tube Ø15×2 | 1 | QY25K. 13II.1-2 |
| 46 | 111201477 | 无缝管 Ø15×2 | Seamless Tube Ø15×2 | 1 | QY25K. 13II.1-3 |
| 47 | 111201478 | 无缝管 Ø25×3 | Seamless Tube Ø25×3 | 1 | QY25K. 13II.1-4 |
| 48 | 111201479 | 无缝管 Ø25×3 | Seamless Tube Ø25×3 | 1 | 1 QY25K. 13II.1-5 |
| 49 | 111201480 | 无缝管 Ø25×3 | Seamless Tube Ø25×3 | 1 | QY25K. 13II.1-6 |
| 50 | 111201481 | 无缝管 Ø25×3 | Seamless Tube Ø25×3 | 1 | QY25K. 13II.1-7 |
| 51 | 111201482 | 无缝管 Ø15×2 | Seamless Tube Ø15×2 | 1 | QY25K. 13II.1-8 |
| 52 | 111201504 | 无缝管 Ø25×3 | Seamless Tube Ø25×3 | 1 | QY25K.13II.1-9 |
| 53 | 803162246 | 管接头 | Pipe Fitting | 1 | 30S/G3/4-220 |
| 54 | 110500454 | 变幅缸平衡阀安装总成 | Pipes of Elevating Mech | 1 | QY16K.13.2.17A |
| 55 | 111201483 | 回转缓冲阀总成 | Pipes of Commutation Valve | 1 | QY25K. 13II.1.12 |
| 56 | 111201484 | 无缝管中 Ø10×1.5 | Seamless Tube Ø10×1.5 | 1 | QY25K. 13II.1-13 |
| 57 | 110500449 | 回转马达安装总成 | Pipes of Swing Gear | 1 | QY16K.13.2.19A |
| 58 | 803196051 | 集流管 | Compositive-pipe | 1 | JHF5/170-G14-210L-10L/15L-10L |
| 59 | 111201485 | 无缝管 Ø10×1.5 | Seamless Tube Ø10×1.5 | 1 | QY25K.13II.1_15 |
| 60 | 111201511 | 卷扬马达平衡阀安装总成 | Pipes of Lifting Mech | 2 | QY25K.13.2.17 |
| 61 | 111201486 | 无缝管 Ø25×2.5 | Seamless Tube Ø25×2.5 | 1 | QY25K.13II.1-16 |
| 62 | 111201487 | 无缝管 Ø25×2.5 | Seamless Tube Ø25×2.5 | 1 | QY25K.13II.1-17 |
| 63 | 111201488 | 无缝管 Ø25×2.5 | Seamless Tube Ø25×2.5 | 1 | QY25K.13II.1-18 |
| 64 | 111201489 | 无缝管 Ø25×2.5 | Seamless Tube Ø25×2.5 | 1 | QY25K.13II.1-19 |
| 65 | 111201490 | 无缝管 Ø25×2.5 | Seamless Tube Ø25×2.5 | 1 | QY25K. 13II.1-20 |
| 66 | 111201491 | 无缝管 Ø25×2.5 | Seamless Tube Ø25×2.5 | 1 | QY25K. 13II.1-21 |
| 67 | 111201492 | 无缝管 Ø25×2.5 | Seamless Tube Ø25×2.5 | 1 | QY25K. 13II.1-22 |
| 68 | 111201493 | 无缝管 Ø25×2.5 | Seamless Tube Ø25×2.5 | 1 | QY25K. 13II.1-23 |
