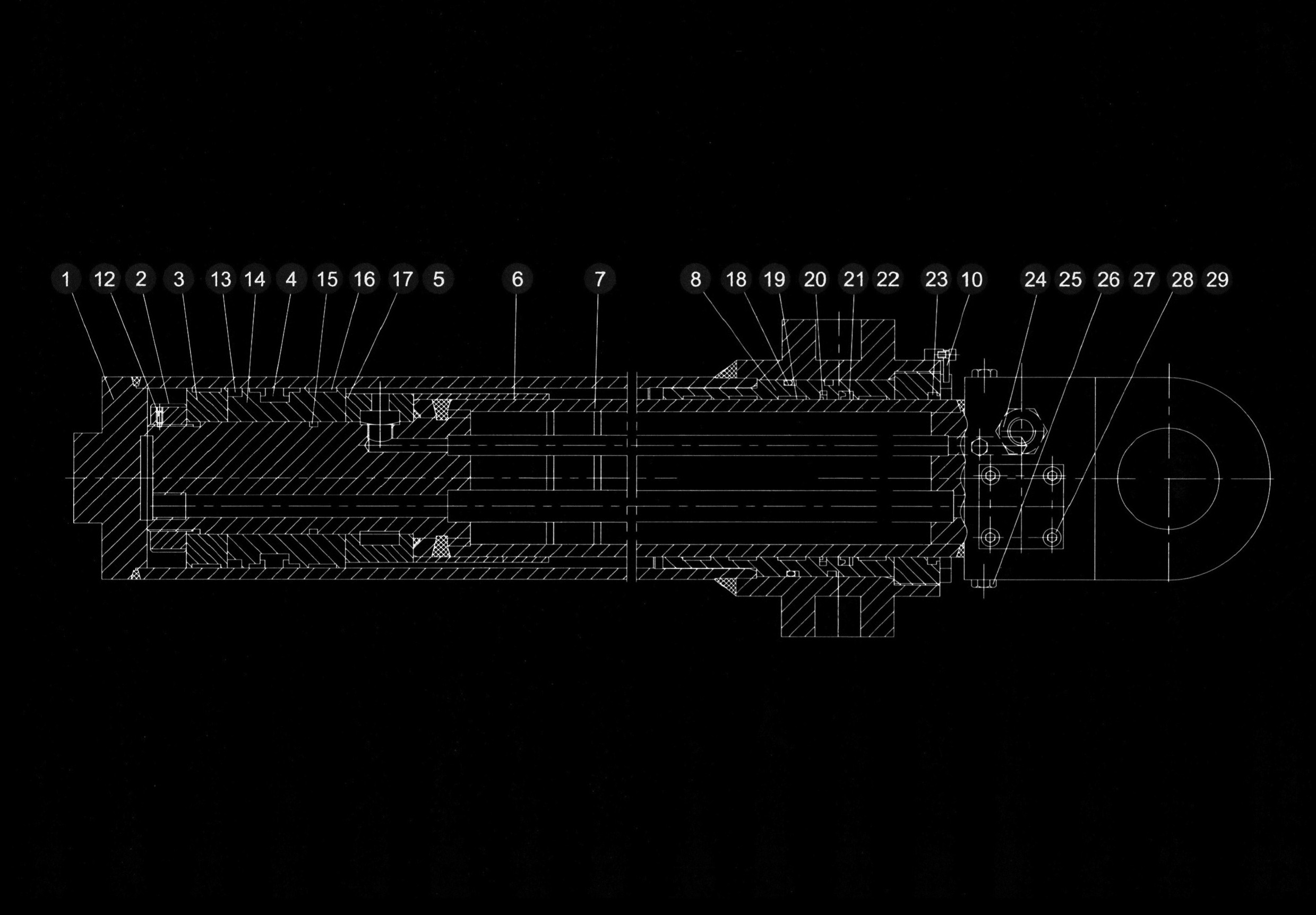

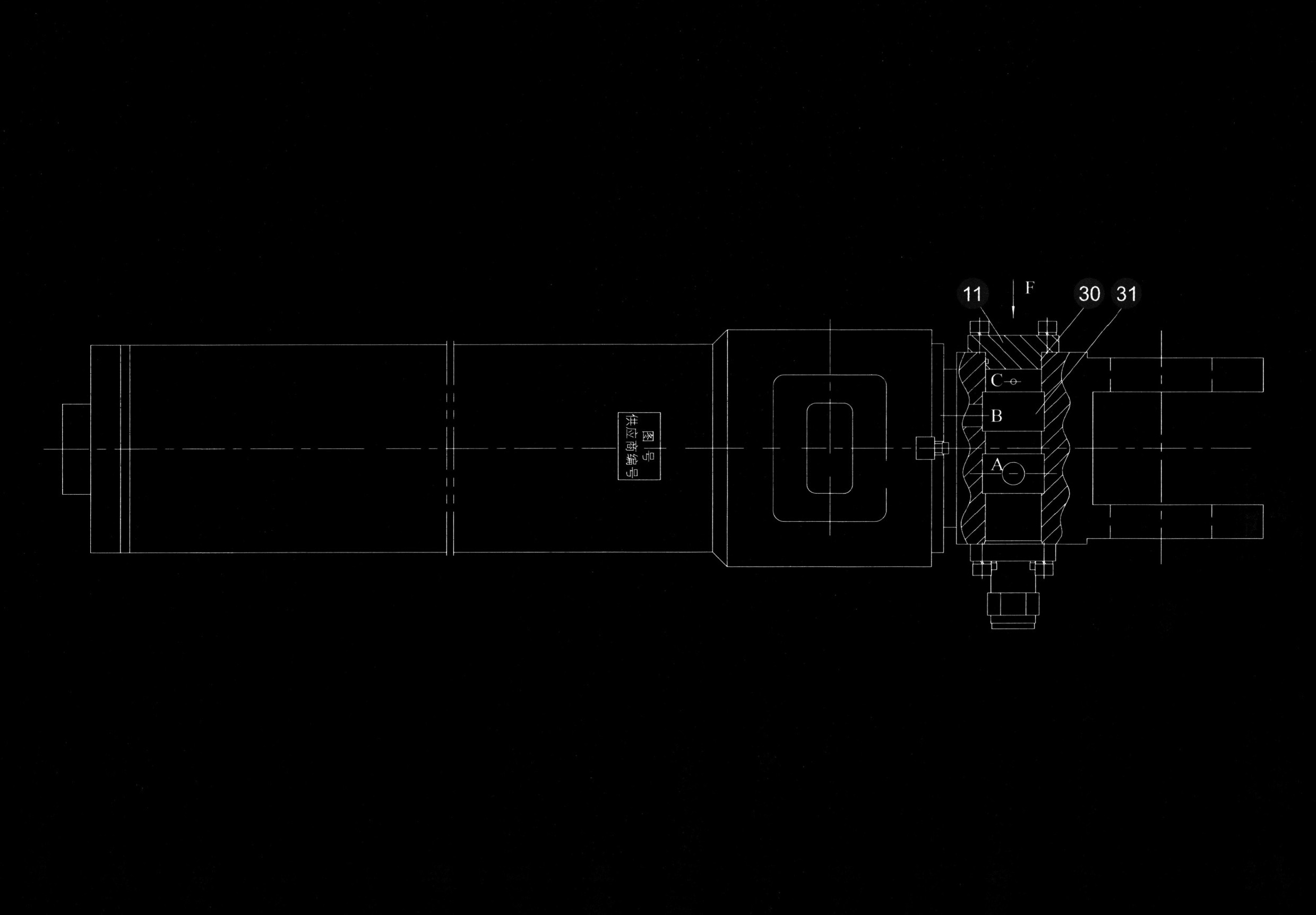

110102402 伸缩油缸 Telescopic Cylinder
| 序号 | 零部件代号 | 名称 | 数量 | 备注 | |
| Sr, No. | Part No. | Partname | Q’ ty | Remark | |
| 1 | QY25K.16B-01 | 缸筒 | Cylinder | 1 | |
| 2 | 螺母 | Nut | 1 | ||
| 3 | QY16K.16-9 | 挡板 | Fender | 1 | |
| 4 | QY25K. 16-08 | 活塞 | Piston | 2 | |
| 5 | QY25K. 16-07 | 隔套 I | Separate the Cover I | 1 | |
| 6 | QY20G. 1.3-05 | 隔套 II | Separate the Cover II | 1 | |
| 7 | QY25K.16B-02 | 活塞杆 | Rod | 1 | GB1235-76 |
| 8 | 导向套 | Front Cover | 1 | ||
| 9 | QY25K.16B-03 | 压盖 | Cover | 1 | GB1235-76 |
| 10 | 防松块 | Lock Block | 1 | ||
| 11 | QY25K. 16-03 | 盖板 | Cover | 1 | GS0722V2 |
| 12 | QY25K. 16-02 | 螺钉 | Bolt | 1 | |
| 13 | QY16K.16-6 | OUHR活塞密封 | OUHR Piston Seal | 1 | |
| QY16K.16-3 | D160X145X9 | ||||
| 14 | 挡圈 | Backup Ring | 1 | ||
| 15 | DAS组合封 D160 | DAS Assembled Seal D160 | 1 | CL0179C1 | |
| 16 | O型圈 | Backup Ring | 1 | ||
| 17 | WRT2型抗磨环 | Wear Ring | 2 | ||
| 18 | O型圈 | O-ring | 2 | ||
| 19 | 抗磨环 | Wear Ring | 4 | ||
| 20 | HBTS型组合封 dl40×155.5×5.9 | Assembled Seal dl40×155.5×5.9 | 1 | ||
| 21 | IUH杆密封 dl40×155×9 | O-ring dl40×155×9 | 1 | ||
| 22 | 挡圈 | Backup Ring | 1 | ||
| 23 | LBH防尘 dl40×153×7×95 | Series Wiper dl40×153×7×95 | 1 | ||
| 24 | 螺塞 | Screw Plug | 2 | ||
| 25 | 组合垫圈 | Assembled Washer | 2 | ||
| 26 | 螺塞 | Screw Plug | 2 | ||
| 27 | 组合垫圈 | Assembled Washer | 1 | ||
| 28 | 螺钉 | Bolt | 8 | ||
| 29 | 垫圈 | Washer | 8 | ||
| 30 | O型圈 | O-ring | 1 | GB1235-76 | |
| 31 | 平衡阀 | Load Control Valve | 1 |
