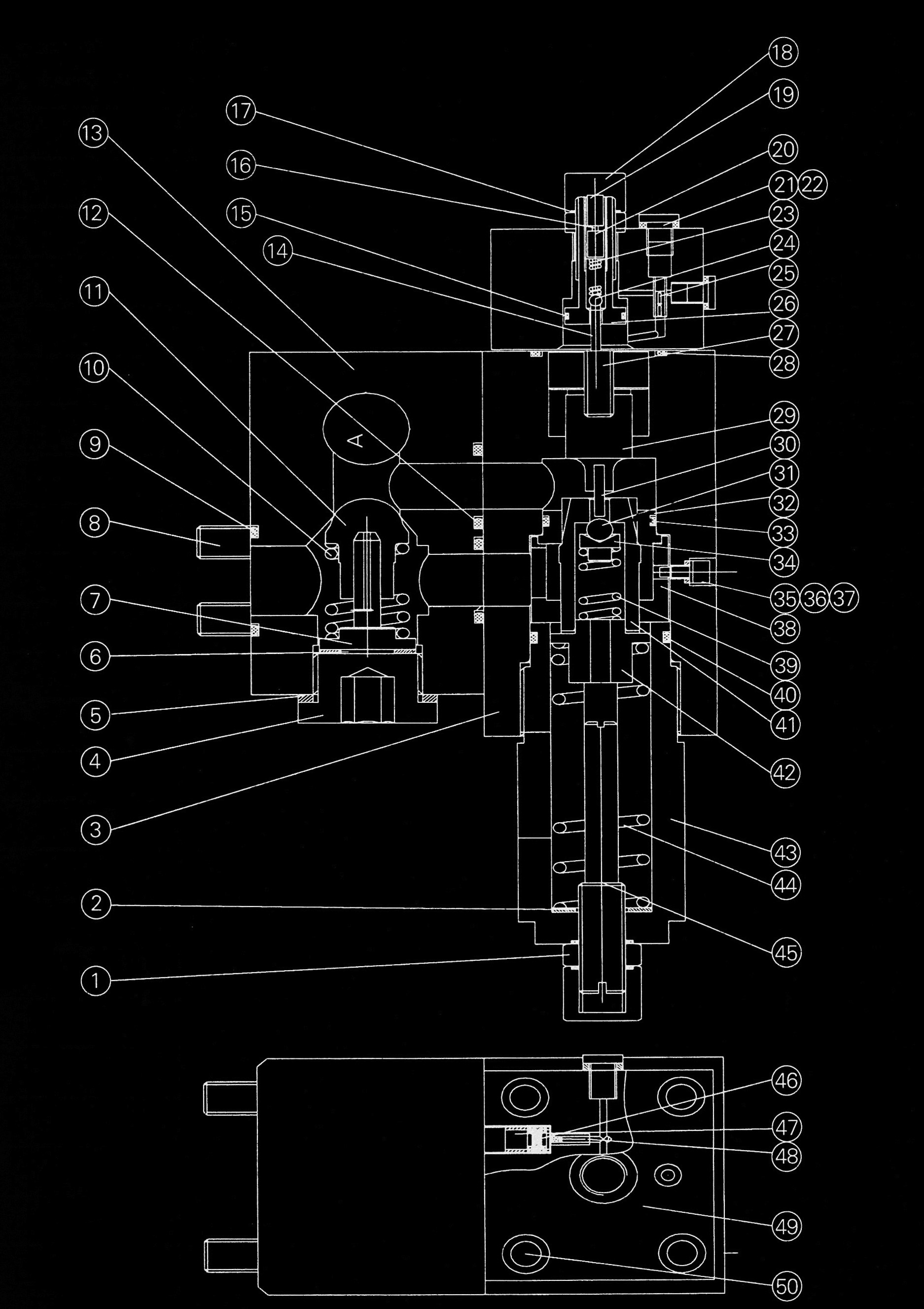

10100549 起升平衡阀 Counterbalance Valve of Winch
| 序号 | 代号 | 名称 | 数量 | 备注 | |
| № | Part No. | Part Description | Q’ty | Remark | |
| 1 | 10430026 | 螺母 M14×1 | Nut M14×1 | 2 | |
| 2 | 12100827 | 塾圏 | Washer | 1 | |
| 3 | 12101394 | 阀体 | Body valve | 1 | |
| 4 | 10130294 | 螺塞 M33×1.5 | Plug M33×1.5 | 1 | |
| 5 | 12101397 | 密封垫 Ø33 | Gasket Ø33 | 1 | |
| 6 | 12101768 | 垫片 Ø16×1.5 | Washer Ø16×1.5 | 1 | |
| 7 | 12101772 | 座 | Seat | 1 | |
| 8 | 10420408 | 螺钉 M12×75 | Screw M12×75 | 4 | |
| 9 | 10130271 | O形圈 40×3.5 | O-ring 40×3.5 | 1 | |
| 10 | 12102879 | 弹簧 | Spring | 1 | |
| 11 | 12102343 | 阀 | Valve | 1 | |
| 12 | 12102874 | O形圈 31×3.5 | O-ring 31×3.5 | 2 | |
| 13 | 12102875 | 阀体 | Body Valve | 1 | |
| 14 | 12102876 | 钢针 Ø3×30 | Needle Ø3×30 | 1 | |
| 15 | 12102877 | O形圈 17×1.8 | O-ring 17×1.8 | 2 | |
| 16 | 12102878 | 环 Ø4 | Ring Ø4 | 1 | |
| 17 | 12102321 | O形圈 15×1.8 | O-ring 15×1.8 | 2 | |
| 18 | 10430026 | 螺母 M14×1 | Nut M14×1 | 2 | |
| 19 | 10420409 | 螺钉 M8×10 | Screw M8×10 | 1 | |
| 20 | 10420409 | 螺钉 M8×10 | Screw M8×10 | 1 | |
| 21 | 10130107 | 螺塞 M8×1 | Plug M8×1 | 3 | |
| 22 | 12103997 | 密封垫 Ø8 | Gasket Ø8 | 3 | |
| 23 | 12102879 | 弹簧 | Spring | 1 | |
| 24 | 12102880 | 钢珠 Ø6 | Steel ball Ø6 | 1 | |
| 25 | 12102881 | 阻尼 Ø0.3 | Damping Ø0.3 | 2 | |
| 26 | 12102882 | 调节杆 | Adjustment bar | 1 | |
| 27 | 10420006 | 螺钉 M8×25 | Screw M8×25 | 1 | |
| 28 | 12102899 | O形圈 35.5×2.65 | Oring 35.5×2.65 | 1 | |
| 29 | 12103998 | 活塞 | Ram | 1 | |
| 30 | 12102901 | 顶针 Ø3×20 | Needle Ø3×20 | 1 | |
| 31 | 12102902 | 钢珠 Ø8 | Steel ball Ø8 | 1 | |
| 32 | 12101772 | 座 | Seat | 1 | |
| 33 | 10130211 | O形圈 30×2.65 | O-ring 30×2.65 | 1 | |
| 34 | 12101772 | 座 | Seat | 1 | |
| 35 | 12102905 | 密封垫 Ø5 | Gasker Ø5 | 1 | |
| 36 | 12102906 | 环 Ø5 | Ring Ø5 | 1 | |
| 37 | 10420052 | 螺钉 M5×12 | Screw M5×12 | 1 | |
| 38 | 12102925 | 阀套 | Valve sheath | 1 | |
| 39 | 12102340 | 弹簧 | Spring | 1 | |
| 40 | 12102909 | O形圈 42×3.1 | O-ring 42×3.1 | 1 | |
| 41 | 12102343 | 阀 | Valve | 1 | |
| 42 | 12101772 | 座 | Seat | 1 | |
| 43 | 12103999 | 弹簧套 | Spring sheath | 1 | |
| 44 | 12102879 | 弹簧 | Spring | 1 | |
| 45 | 12102882 | 调节杆 | Adjustment bar | 1 | |
| 46 | 12104000 | 过滤器 | Gravitation filter | 1 | |
| 47 | 12102916 | 并帽 M10×4 | Screw nut M10×4 | 1 | |
| 48 | 12104001 | 阻尼 | Damping | 1 | |
| 49 | 12102918 | 阀盖 | Valve cover | 1 | |
| 50 | 10420006 | 螺钉 M8×25 | Screw M8×25 | 4 | |
