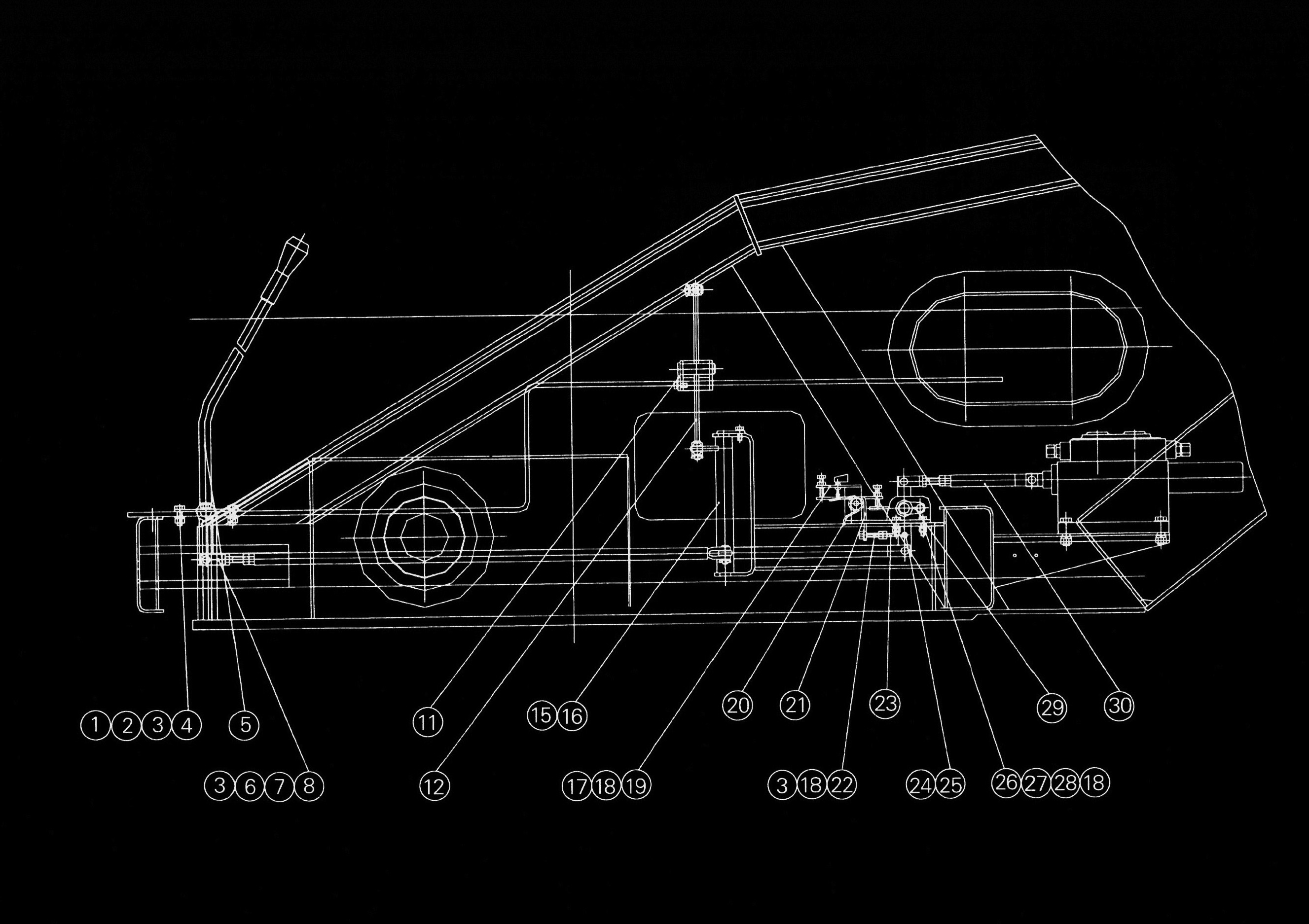

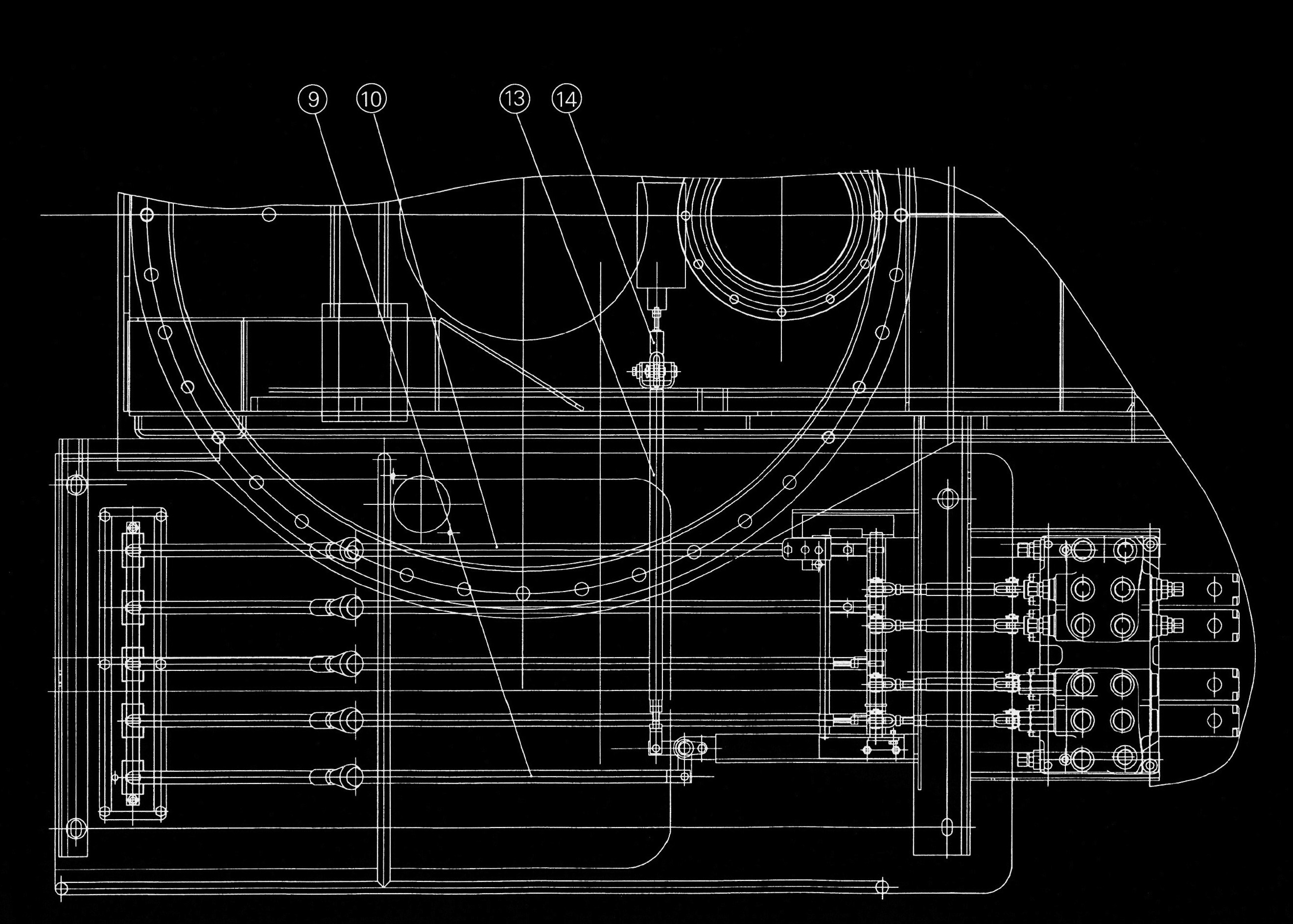

06027001 转台操纵 Operation of Turn Table
| 序号 | 代号 | 名称 | 数量 | 备注 | |
| № | Part No. | Part Description | Q’ty | Remark | |
| 1 | 10410038 | 螺栓 M10×30 | Bolt M10×30 | 6 | |
| 2 | 10440006 | 塾圈 10 | Washer 10 | 6 | |
| 3 | 10440009 | 垫圈 10 | Washer 10 | 27 | |
| 4 | 10430004 | 螺母 M10 | Nut M10 M10 | 6 | |
| 5 | 01501007 | 操纵杆总成 | Spool actuation rod | 1 | |
| 6 | 01501008 | 连接体 | Fitting | 10 | |
| 7 | 10471067 | 销轴 B10×35 | Paralled Pin B10×35 | 19 | |
| 8 | 10470001 | 销 3.2×20 | Pin 3.2×20 | 19 | |
| 9 | 06027010 | 拉杆总成 | Pull rod | 1 | |
| 10 | 06027012 | 拉杆总成 | Pull rod | 4 | |
| 11 | 01327010 | 转轴 | rotary motion shaft | 1 | |
| 12 | 01327012 | 转套 | rotary motion jacket | 1 | |
| 13 | 06027014 | 拉杆总成 | Pull rod | 1 | |
| 14 | 01327020 | 拉杆总成 | Pull rod | 1 | |
| 15 | 06027016 | 转轴 | Rotary motion shaft | 1 | |
| 16 | 06027018 | 转套 | Rotary motion jacket | 1 | |
| 17 | 10410140 | 螺栓 M8×40 | Bolt M8×40 | 3 | |
| 18 | 10430001 | 螺母 M8 | Nut M8 | 7 | |
| 19 | 06027024 | 支架 | Bearing | 1 | |
| 20 | 11410404 | 弹簧 | Spring | 1 | |
| 21 | 01501026 | 转换机构 | Alternating rotation | 1 | |
| 22 | 10410563 | 螺栓 M8×60 | Bolt M8×60 | 2 | |
| 23 | 01501057 | 螺母杆 | Nut | 2 | |
| 24 | 10440021 | 垫圈 6 | Washer 6 | 2 | |
| 25 | 10470322 | 销 2×12 | Pin 2×12 | 2 | |
| 26 | 10440001 | 塾圈 8 | Washer 8 | 3 | |
| 27 | 10410013 | 螺栓 M8×30 | Bolt M8×30 | 2 | |
| 28 | 10440062 | 垫圏 8 | Washer 8 | 2 | |
| 29 | 06027020 | 枢纽轴总成 | Pivot | 1 | |
| 30 | 01501050 | 拉杆总成 | Pull rod | 4 | |
