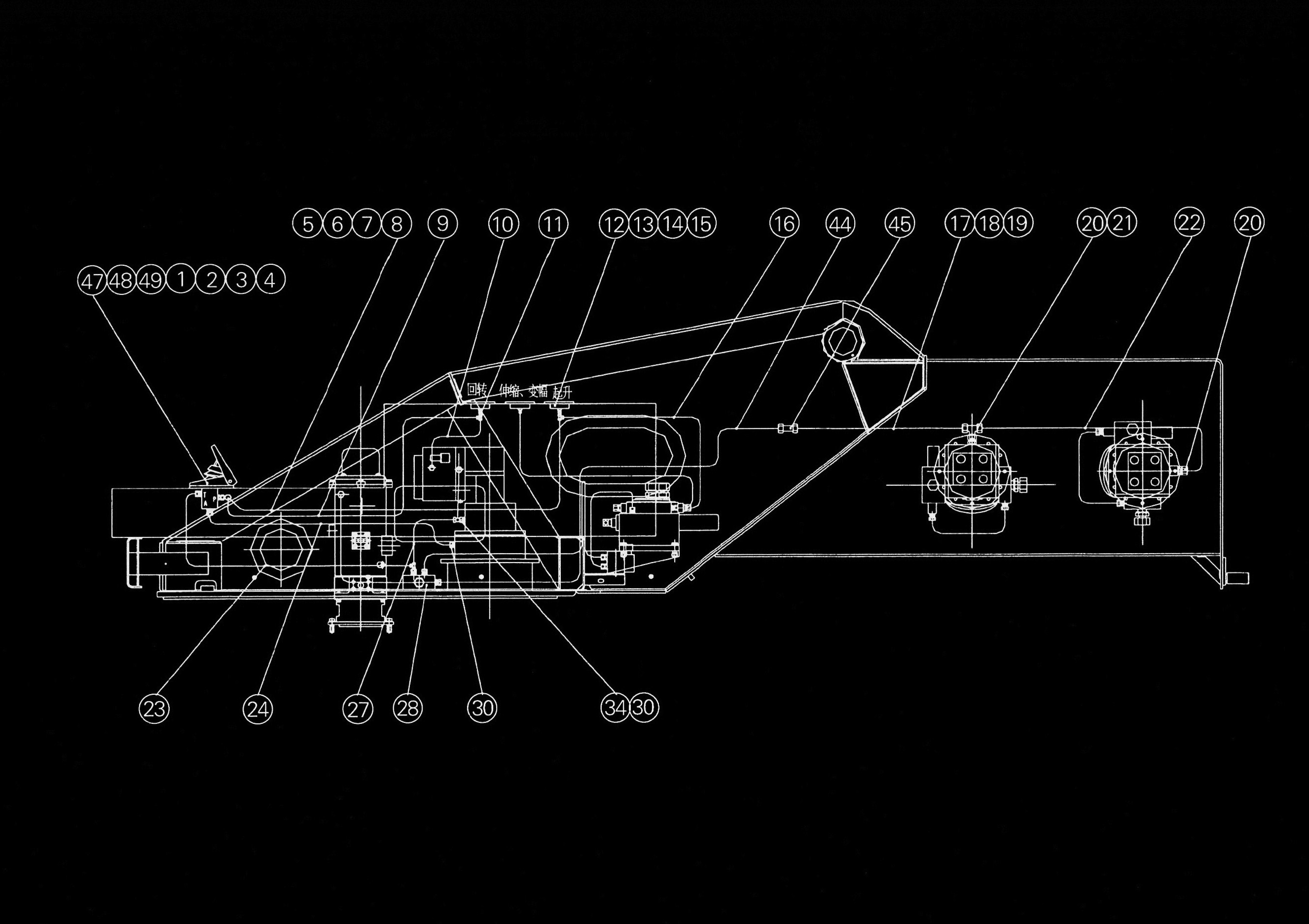

06013037 控制泄露配管 Pipe For Congtrol And Leakage
| 序号 | 代号 | 名称 | 数量 | 备注 | |
| № | Part No. | Part Description | Q’ty | Remark | |
| 1 | 10100584 | 脚踏阀 | Bracket | 1 | |
| 2 | 20121676 | 接头体 | Fitting | 1 | |
| 3 | 20120997 | 接头体 | Fitting | 7 | |
| 4 | 10100545 | 双联单向阀 | Dual-Check vavle | 1 | |
| 5 | 20121009 | 接头体 | Fitting | 2 | |
| 6 | 20121554 | 卡套 | Cutting ring | 10 | |
| 7 | 20430011 | 螺母 | Nut | 10 | |
| 8 | 06013038 | 无缝管 Ø6×1 | Seamless tube Ø6×1 | 1 | |
| 9 | 06013039 | 无缝管 Ø6×1 | Seamless tube Ø6×1 | 1 | |
| 10 | 06013040 | 无缝管 Ø6×1 | Seamless tube Ø6×1 | 1 | |
| 11 | 20121677 | 接头体 | Fitting | 2 | |
| 12 | 10810016 | 压力表 | pressure gauge | 3 | |
| 13 | 20122472 | 接头体 | Fitting | 3 | |
| 14 | 10420423 | 螺钉 M4×20 | Bolt M4×20 | 4 | |
| 15 | 10440019 | 垫圈 4 | Washer 4 | 4 | |
| 16 | 06013041 | 无缝管 Ø6×1 | Seamless tube Ø6×1 | 1 | |
| 17 | 06013042 | 无缝管 Ø18×2 | Seamless tube Ø18×2 | 1 | |
| 18 | 20120053 | 卡套 | Cutting ring | 4 | |
| 19 | 20430005 | 螺母 | Nut | 4 | |
| 20 | 20121678 | 接头体 | Fitting | 2 | |
| 21 | 20121081 | 接头体 | Fitting | 1 | |
| 22 | 06013043 | 无缝管 Ø18×2 | Seamless tube Ø18×2 | 1 | |
| 23 | 10123251 | H胶管接头 | Tube | 1 | |
| 24 | 10122476 | H胶管接头 | Tube | 1 | |
| 25 | 20120021 | 接头体 | Fitting | 1 | |
| 26 | 10122470 | H胶管接头 | Tube | 1 | |
| 27 | 10120027 | H胶管接头 | Tube | 1 | |
| 28 | 01501004 | 泄露集流管 | Compositive-pipe | 1 | |
| 29 | 20121010 | 接头体 | Fitting | 1 | |
| 30 | 20120023 | 接头体 | Fitting | 3 | |
| 31 | 06013044 | 无缝管 Ø10×1.5 | Seamless tube Ø10×1.5 | 1 | |
| 32 | 20120555 | 卡套 | Cutting ring | 2 | |
| 33 | 20430002 | 螺母 | Nut | 2 | |
| 34 | 20121577 | 接头体 | Fitting | 1 | |
| 35 | 10123252 | H胶管接头 | Tube | 1 | |
| 36 | 06013045 | 无缝管 Ø8×1.5 | Seamless tube Ø8×1.5 | 1 | |
| 37 | 20120537 | 卡套 | Cutting ring | 2 | |
| 38 | 20120538 | 螺母 | Nut | 2 | |
| 39 | 10140220 | 单联电磁阀组 | Solenoid valve | 1 | |
| 40 | 10410487 | 螺栓 M5×16 | Bolt M5×16 | 2 | |
| 41 | 10440112 | 塾圈 5 | Washer 5 | 2 | |
| 42 | 06013046 | 无缝管 Ø6×1 | Seamless tube Ø6×1 | 1 | |
| 43 | 06013047 | 无缝管 Ø8×1.5 | Seamless tube Ø8×1.5 | 1 | |
| 44 | 06013053 | 无缝管 Ø18×2 | Seamless tube Ø18×2 | 1 | |
| 45 | 20120063 | 接头体 | Fitting | 1 | |
| 46 | 20121679 | 接头体 | Fitting | 1 | |
| 47 | 10410678 | 螺钉 M6×20 | Bolt M6×20 | 4 | |
| 48 | 10440237 | 垫圈 6 | Washer 6 | 4 | |
| 49 | 12101395 | 垫圈 6 | Washer 6 | 4 | |
